out of stock - contact us to inquire about availability

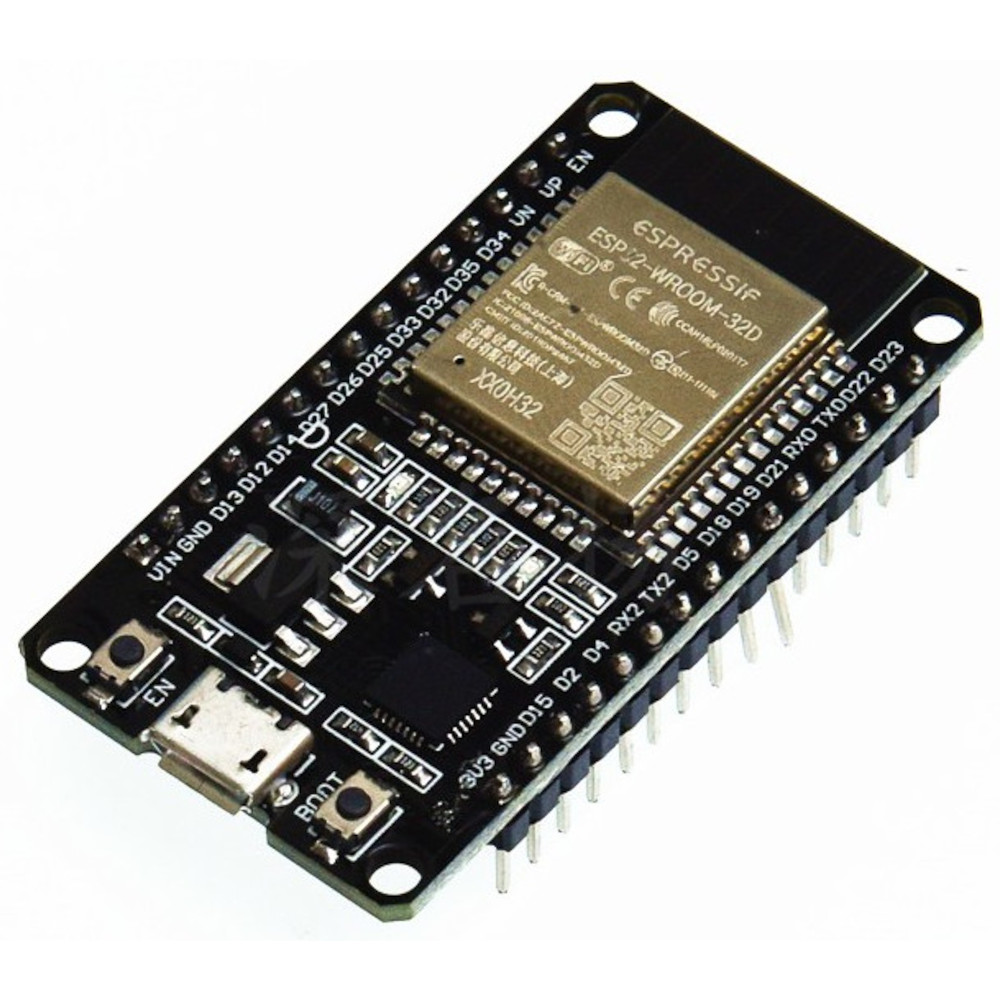

ESP32 ESP-WROOM-32 ESP-32S Development Board 2.4GHz WiFi & Bluetooth
SKU: DEVBOARD-H
UPC: 845832032535
• The ESP32 is a low cost MCU with 802.11n WIFI and Bluetooth capability. The ESP-WROOM-32 development board combines the ESP32 with a power regulator, 4MB of SPI flash, a PCB antenna, a breakout board, and a CP2102 USB TTL serial adapter.
• ESP32 Module: ESP-WROOM-32 • 240MHz dual core microprocessor • 4MB (32Mbit) SPI flash memory • On-chip Hall Sensor
• Interfaces: UART, SPI, SDIO, I2C, LED PWM, Motor PWM, I2S, IR, pulse counter, GPIO, capacitive touch sensor, ADC, DAC, Two-Wire Automotive Interface (ISO-11898-1 compatible)
• USB Powered • CP2102 USB serial interface chip for simple communications and programming
• Compatible with Arduino, MicroPython, or NodeMCU • Size: 28.5x51.8mm
It has been reported that the "ESP32 Dev Module" and ESP32-WROOM-DA profiles both works for flashing in the IDE.
Onboard LED at pin 2 and no extra GIPO's that you can't use
Drivers for the CP2012 serial interface are available here:
https://www.silabs.com/developers/usb-to-uart-bridge-vcp-drivers?tab=downloads
