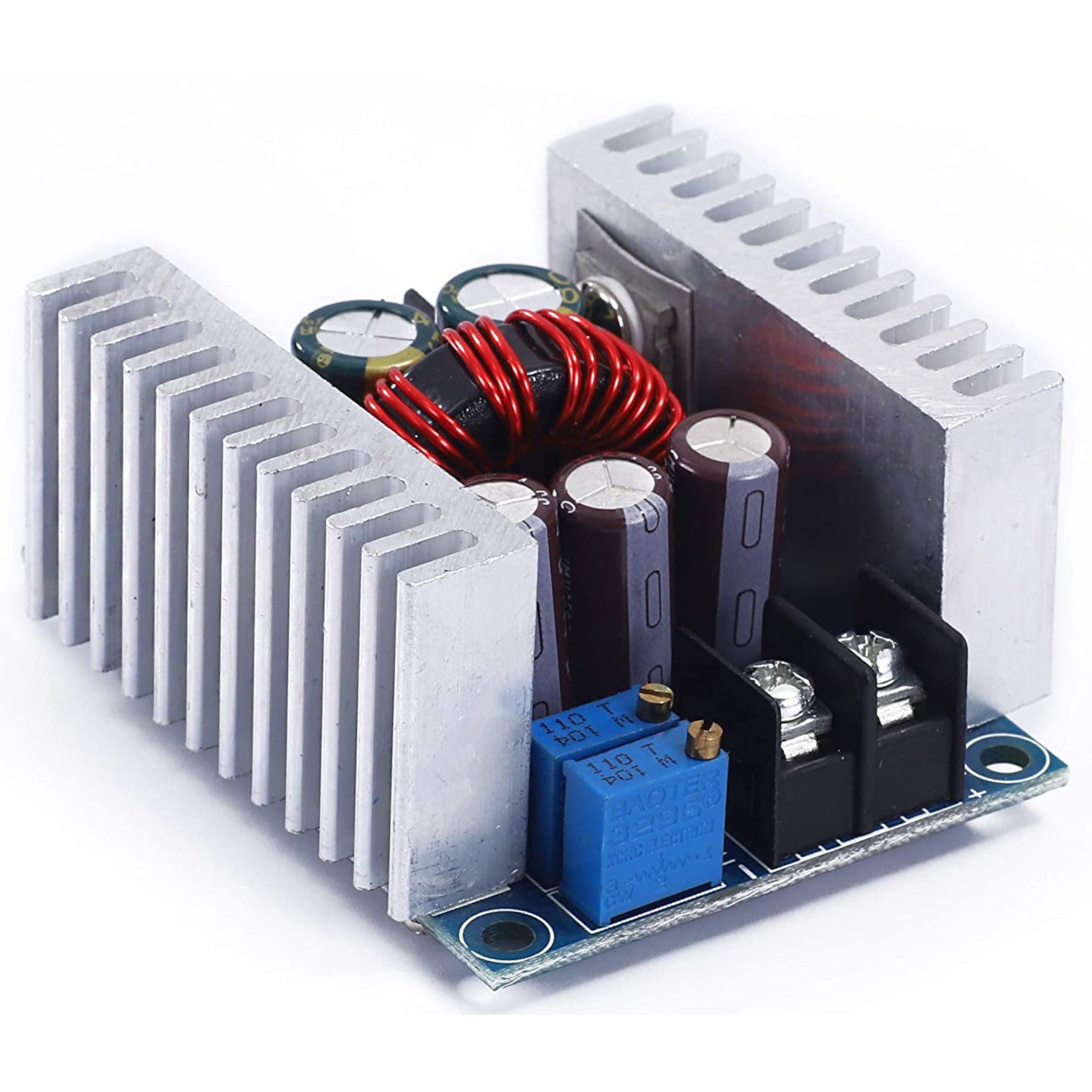

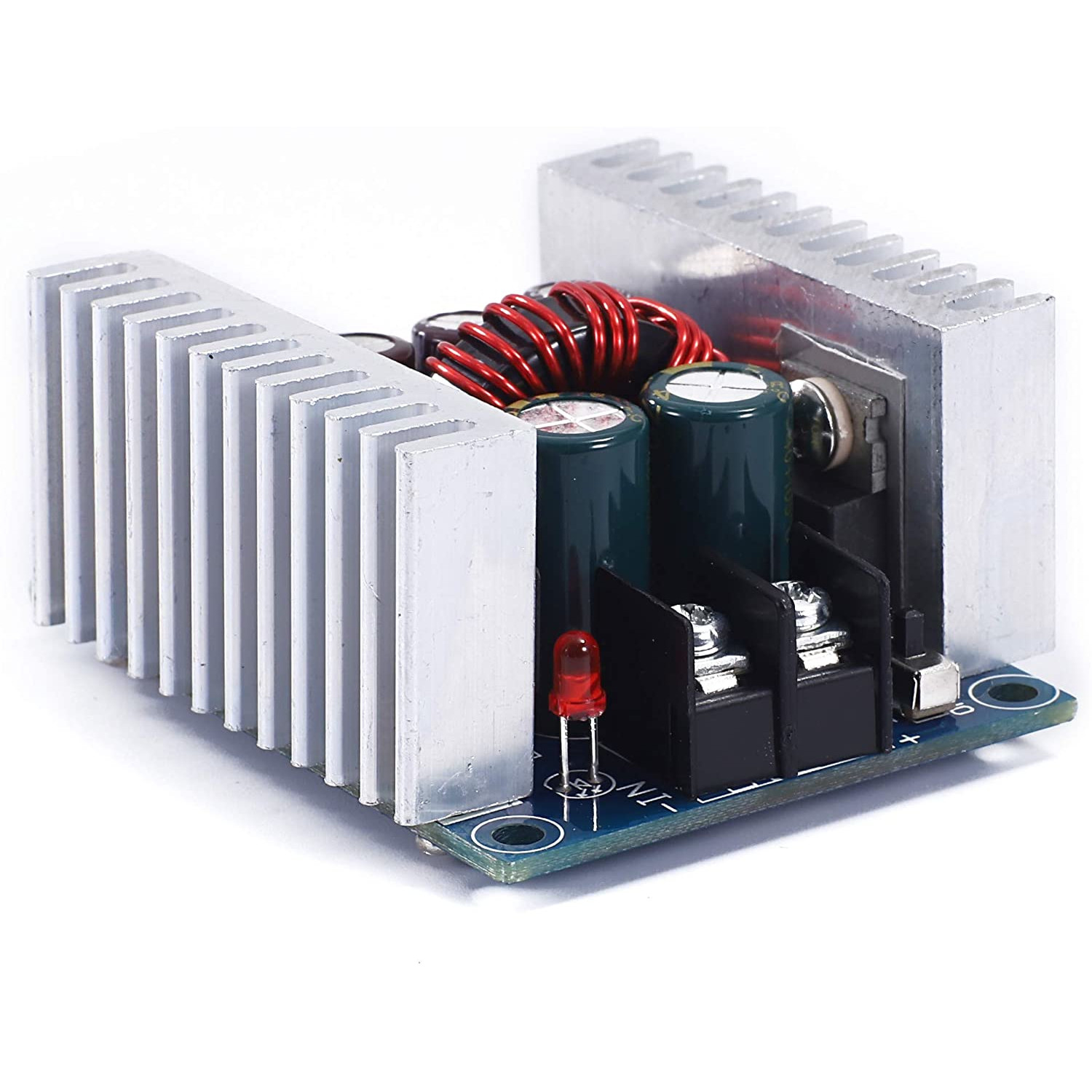

300W Synchronous Buck Module Constant Current CC CV DC DC Step Down Voltage Power Regulator
Price
$7.99FREE SHIPPING ✈️
SKU: DCMOD-L
UPC: 845832032474
• Maintain stable output voltage and limit the output current over a range of input voltages. Great for general voltage conversion, battery charging, powering raw LEDs, automotive electronics, battery conversions, micro-controllers, and electronic projects.
• Input Voltage: 6-40V DC • Output Voltage: 1.25-36V DC • Max Load: 300W/20A Peak, 15A Sustained
• Minimum Dropout: 3V • Conversion Efficiency: Up to 96% • Short-circuit protection • Non-isolated
• Dimensions: 60x53x27mm • LM25116 IC • 150KHz Switching Frequency • 50mV ripple
• Input must be at least 3V more than the output voltage. Applying reverse polarity voltage to the input or output may damage the module. A fan is required if the module temperature exceeds 65°C
