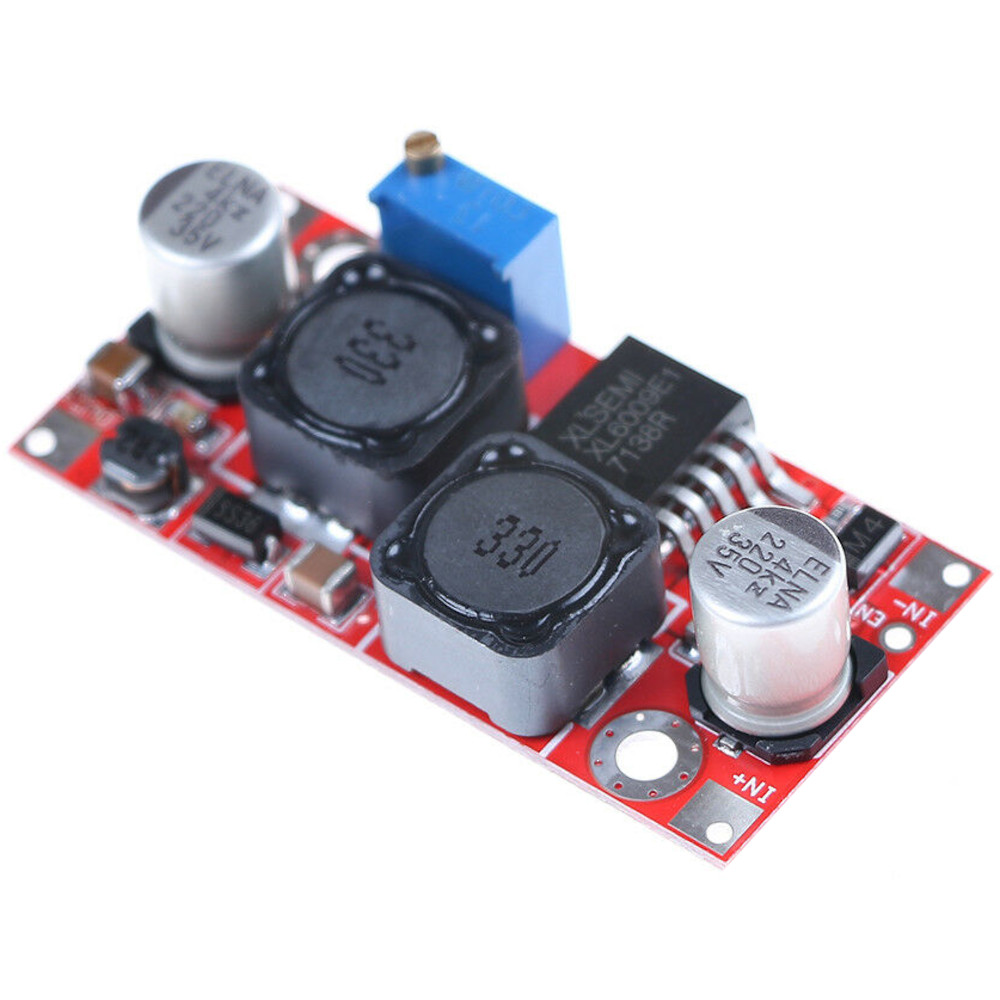

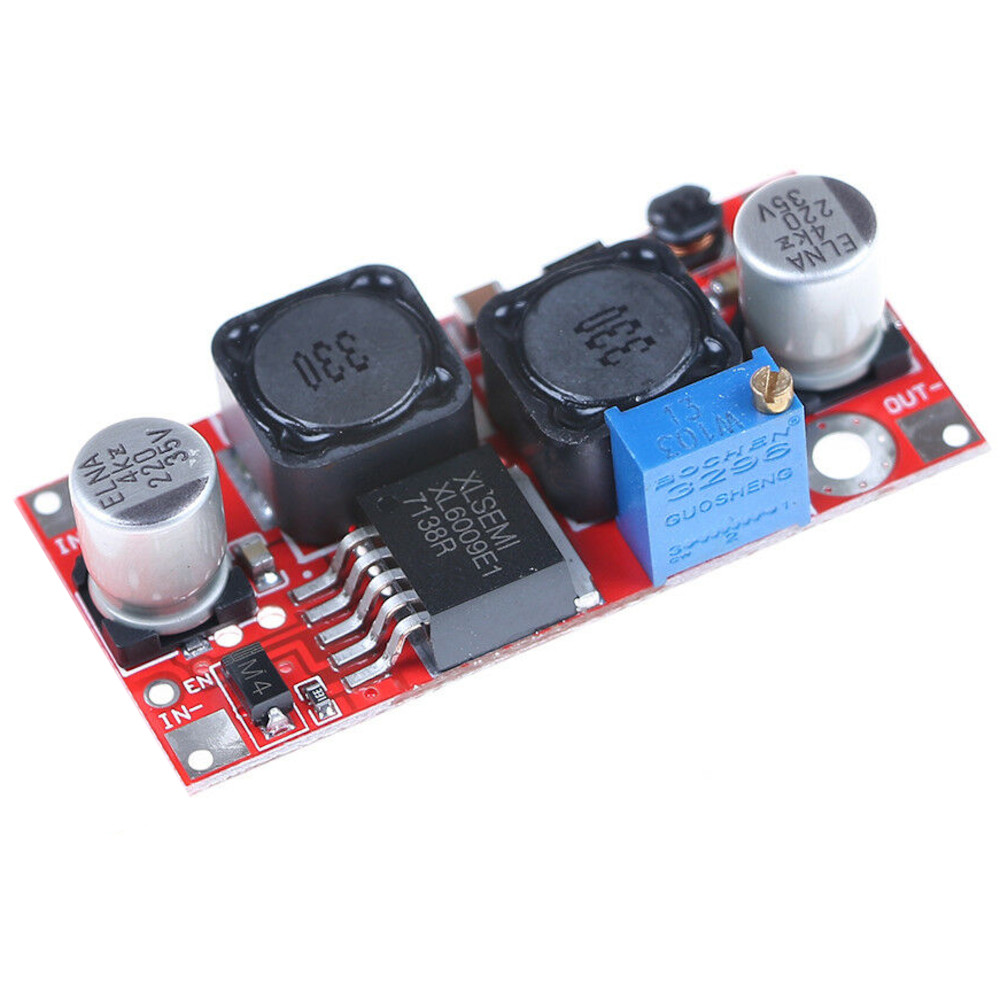

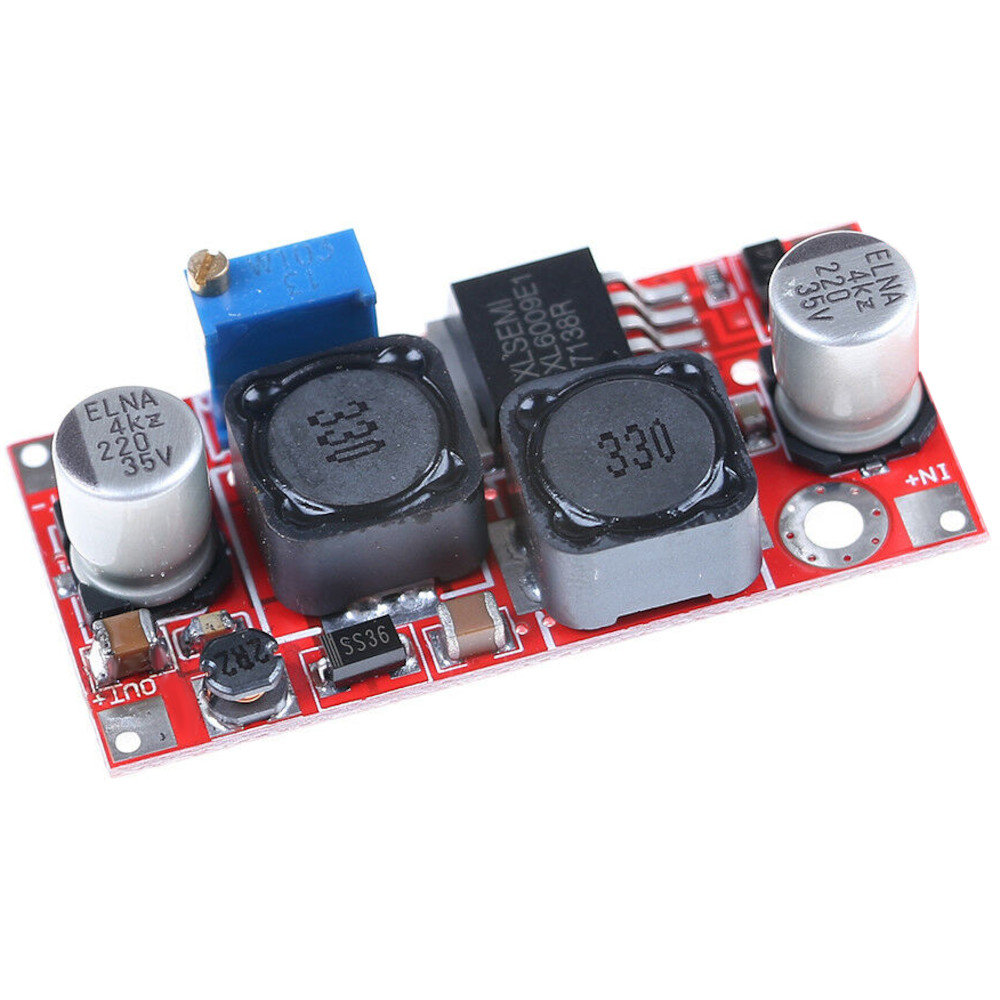

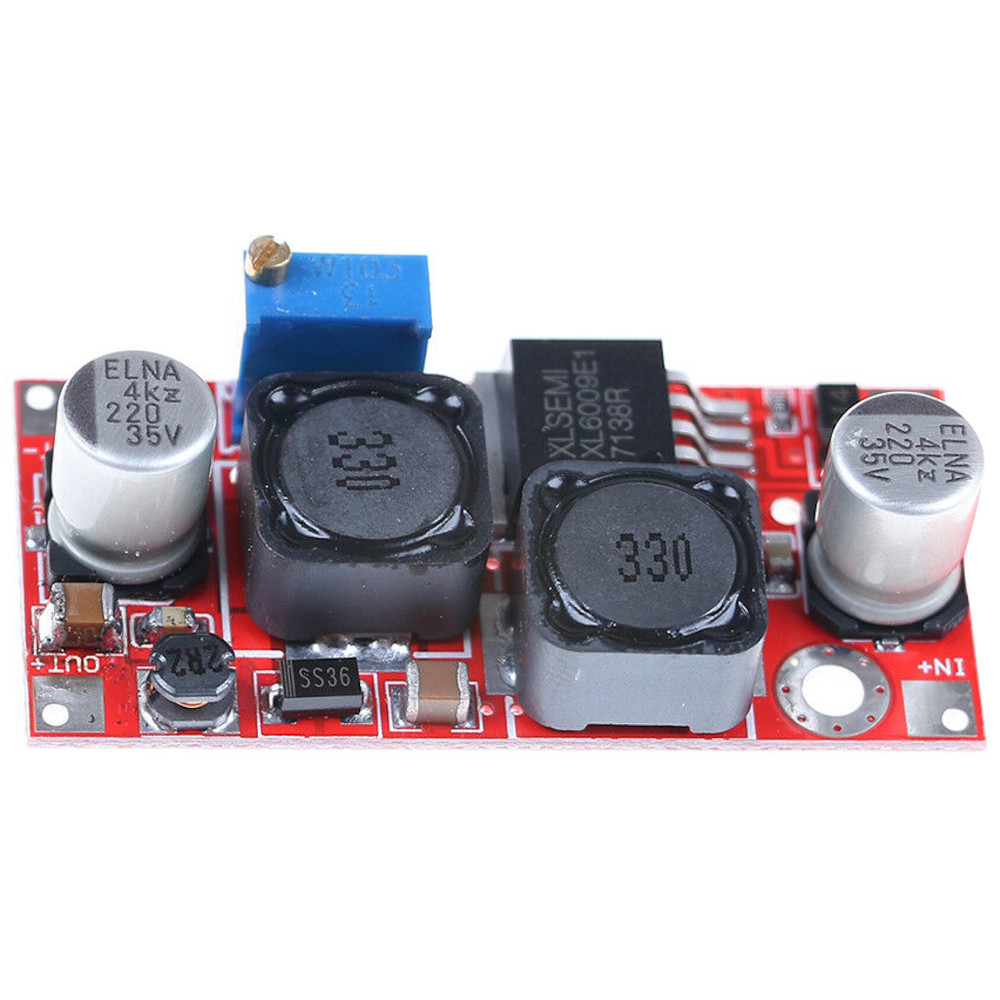

XL6009 DC Buck Boost Step Up or Down Adjustable Voltage Power Module 5V 12V 24V 32V
SKU: DCMOD-P
UPC: 845832033617
• Step DC voltage up or down to maintain stable regulated output
• Suitable for wide range of projects including microcontrollers, LEDs, automotive, computer and all kinds of other DC power applications

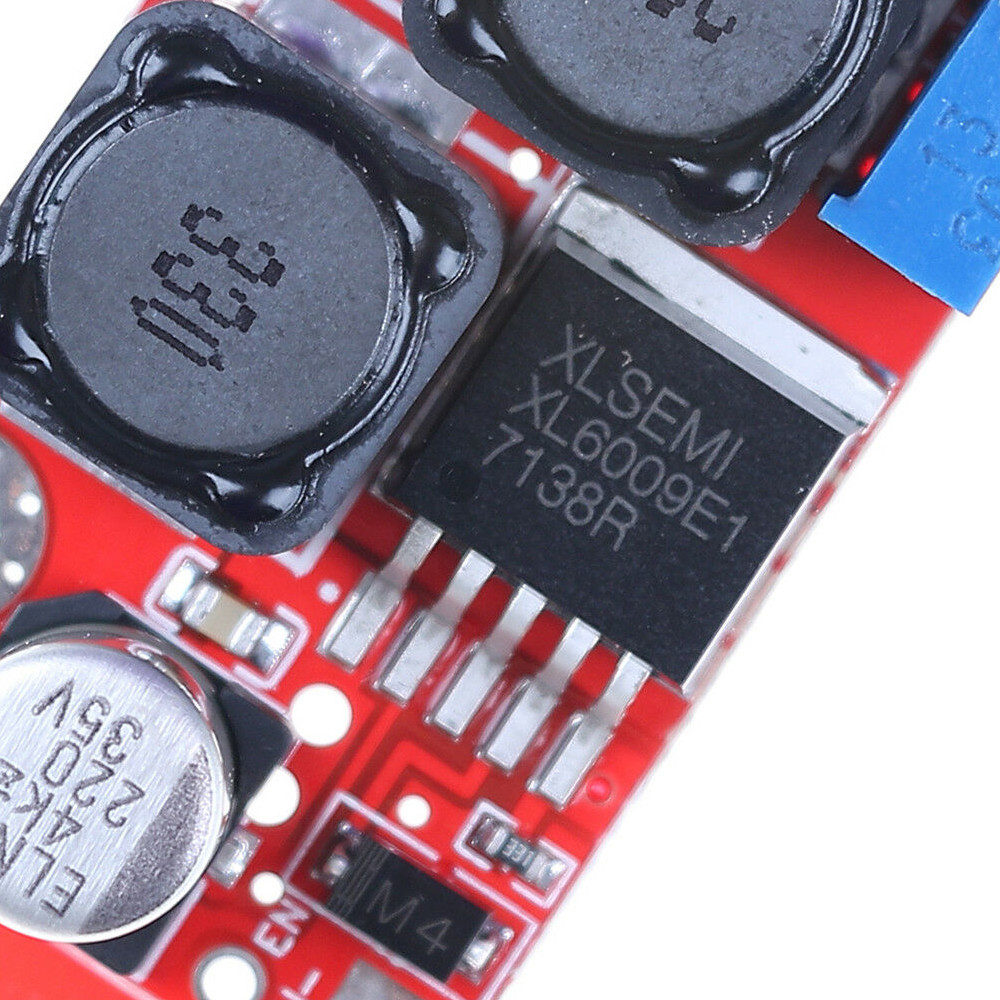

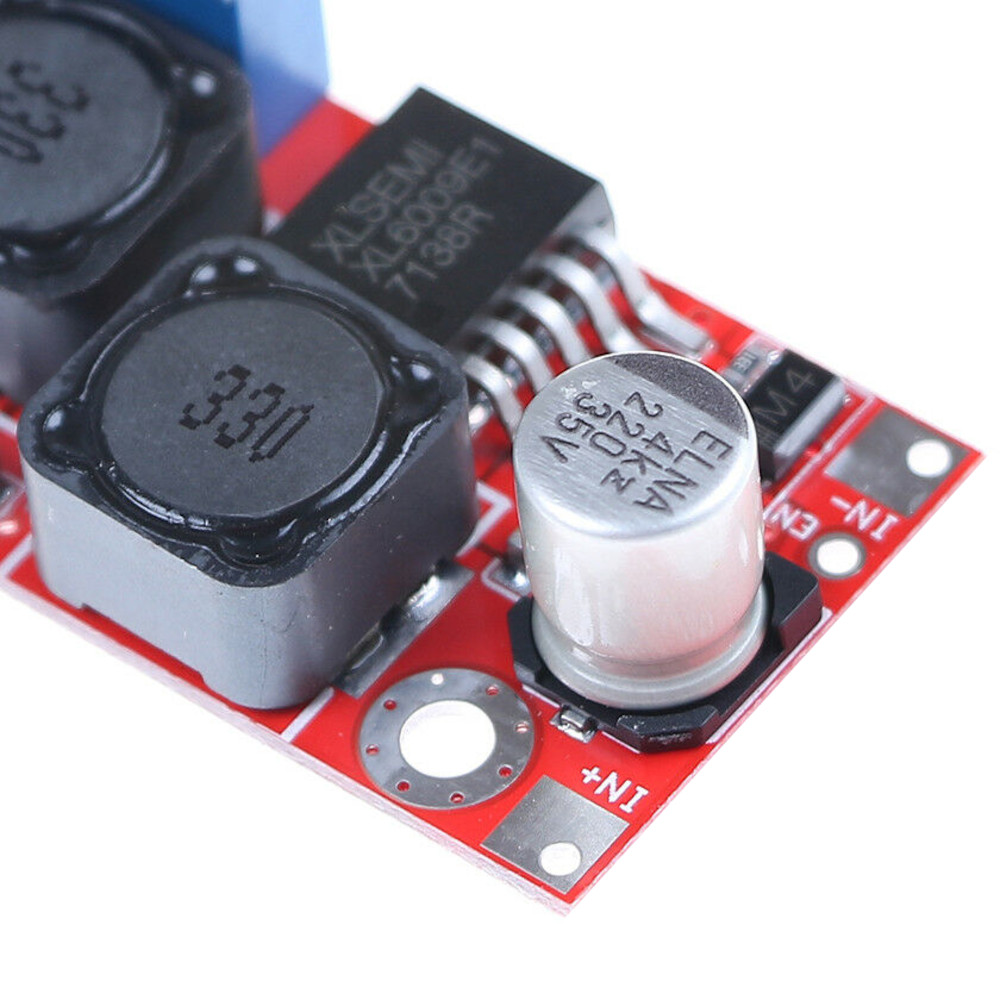

• The XLSEMI XL6009 regulator IC has an integrated 4A MOSFET, over-temperature protection, and over-current protection
• Input: 5-32V DC • Output Voltage: 1.25-32V • Max Output Current: 3A • Max Power: 25W (additional cooling required for over 20W) • 400KHz Switching Frequency • ＜50mV Output ripple • ±0.5% Load Regulation • Up to 94% efficiency (depending on the voltage difference between input and output) • Dimensions: 49x24x12mm
• XL6009 Datasheet: https://www.jacobsparts.com/files/XL6009.pdf
