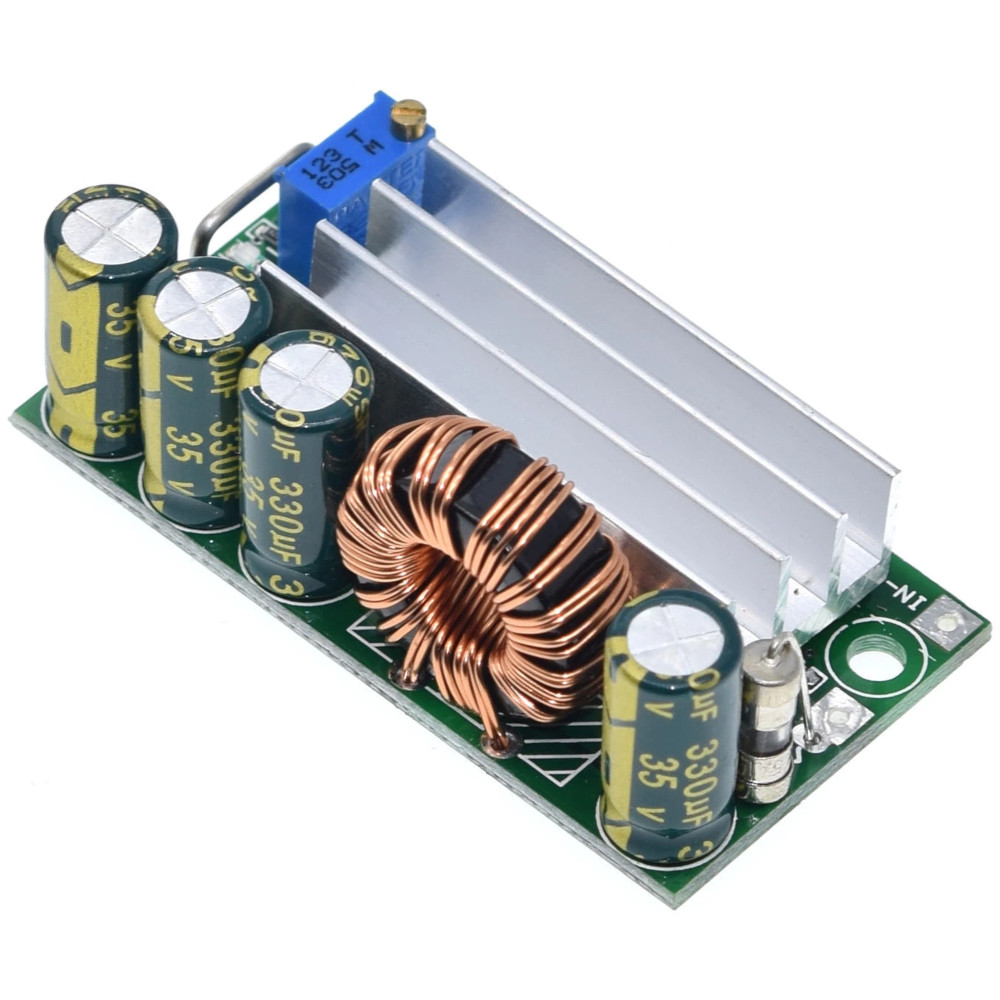

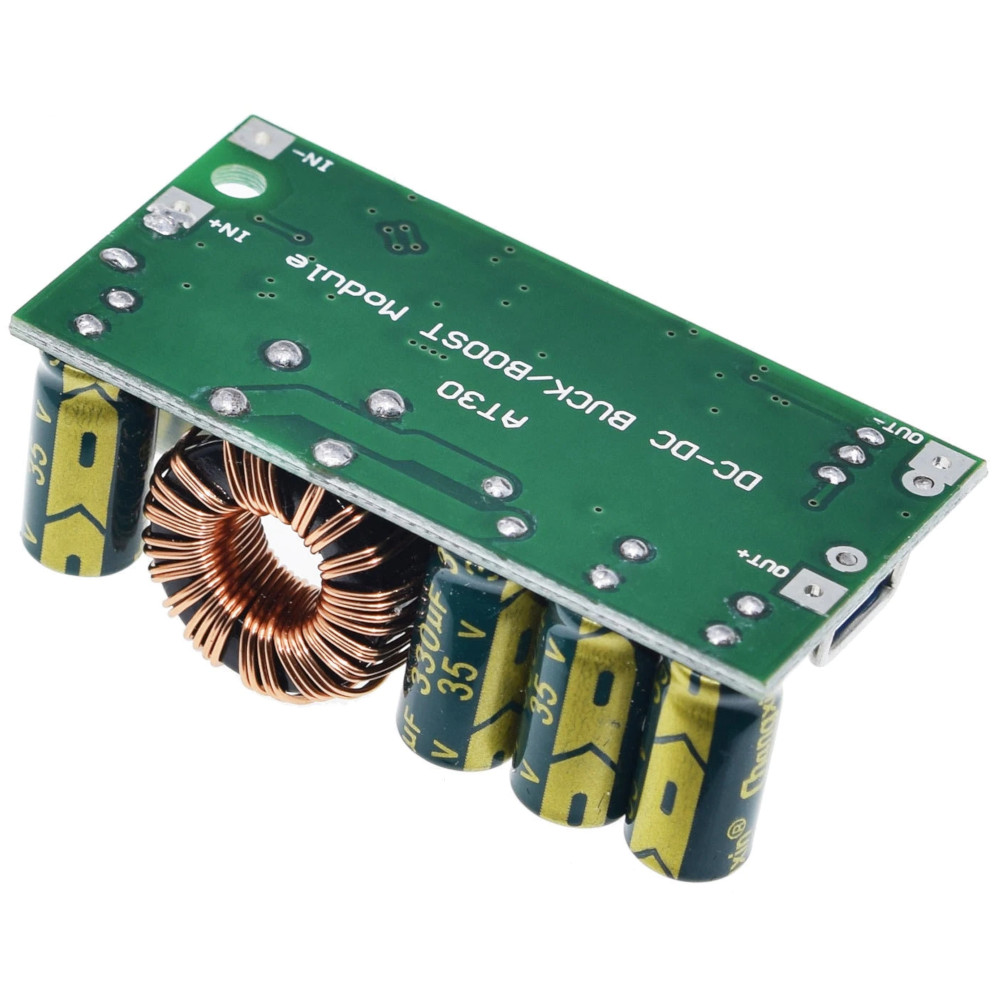

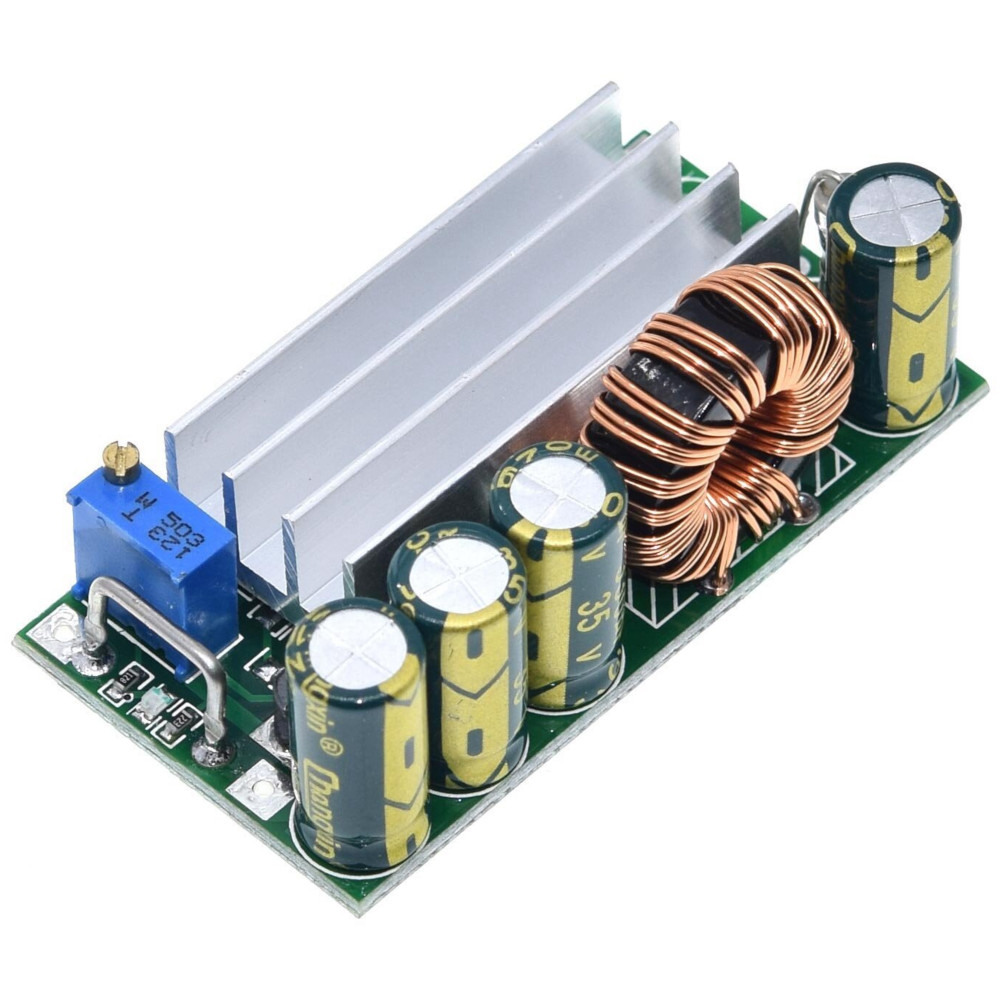

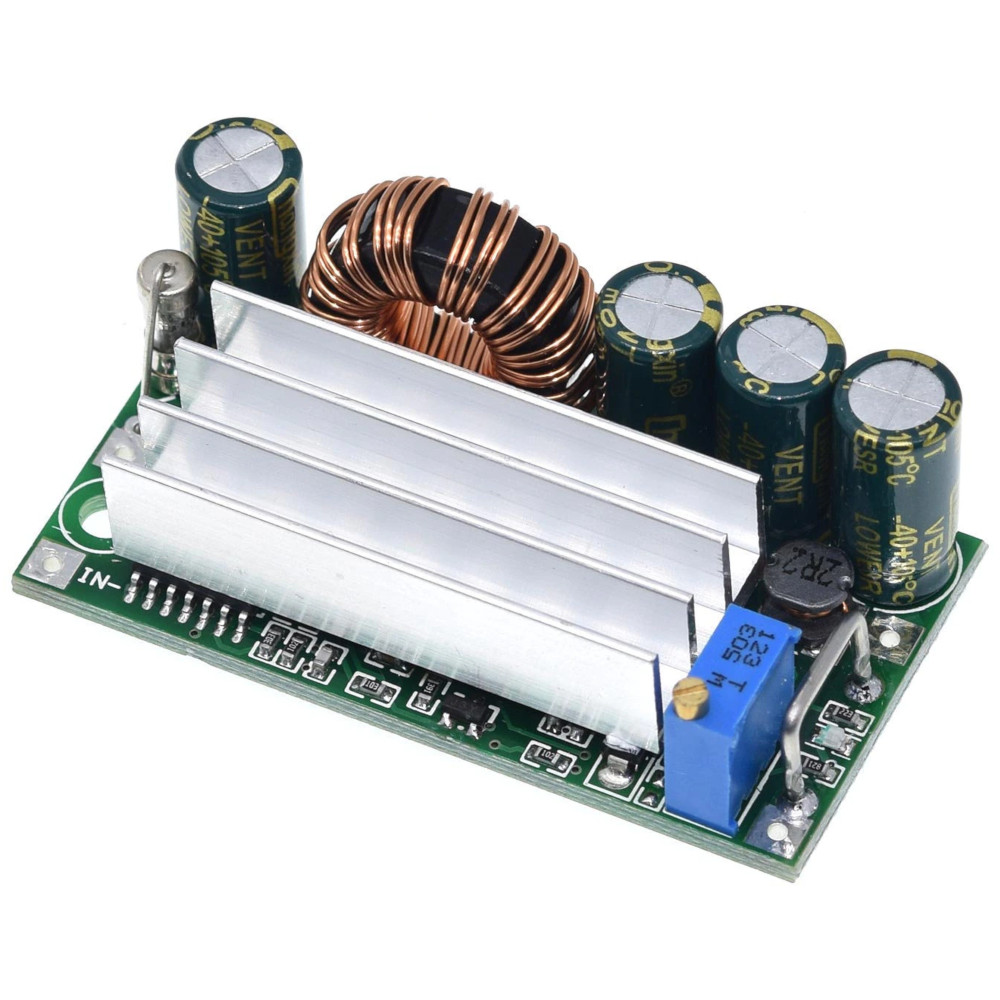

AT30 30W DC-DC Buck Boost Step Up or Down Adjustable Voltage Regulator Power Module with Heatsink, Fuse, and Dual-Stage Output Filter
Price
$6.49FREE SHIPPING ✈️
SKU: DCMOD-R
UPC: 845832033624
• Step DC voltage up or down to maintain stable regulated output
• Suitable for wide range of projects including microcontrollers, LEDs, automotive, computer and all kinds of other DC power applications
• Includes heatsink • Input undervoltage protection • Output short-circuit protection circuit • Dual-stage output filtering • Input fuse

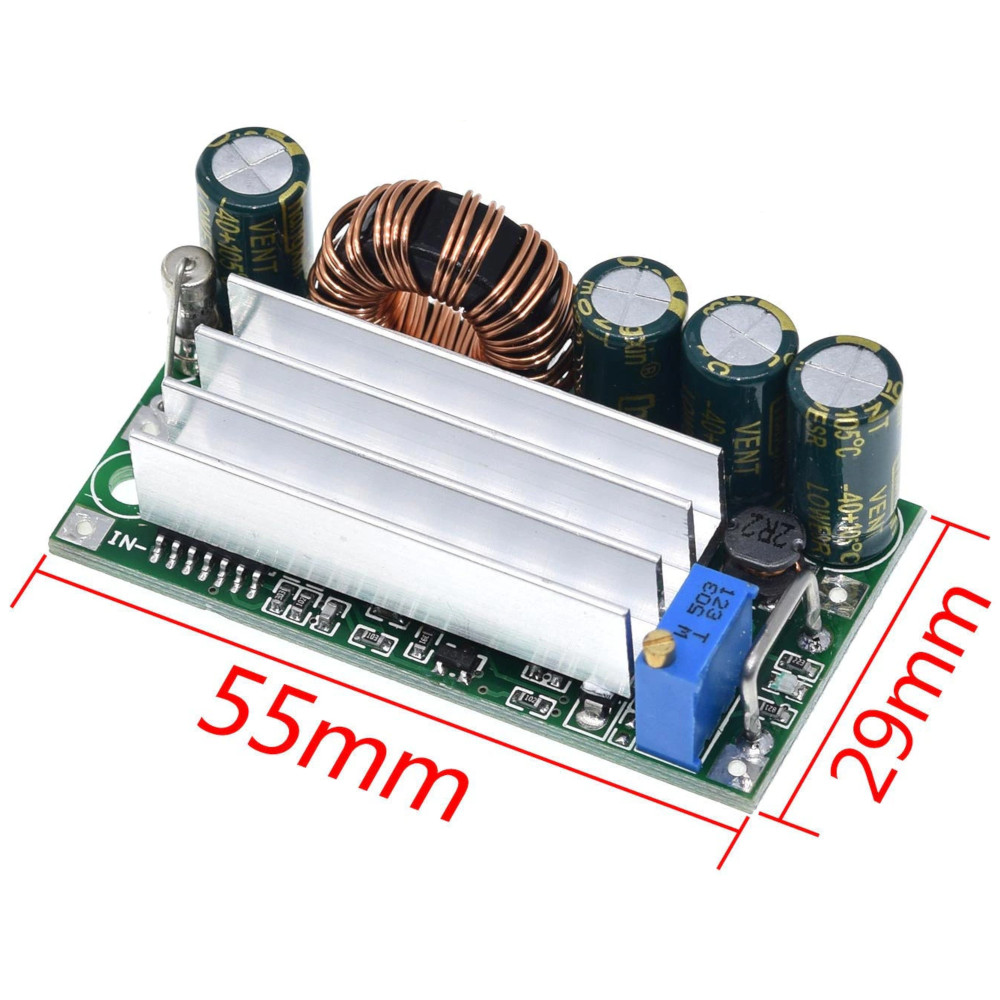

• Input: 4.5-30V DC • Output Voltage: 0.5-30V • Max Output Current: 3A • Max Power: 30W (60W with a cooling fan) • 180KHz Switching Frequency • ＜30mV Output ripple • Efficiency: boost 87-91%, buck 86-90% (depending on the voltage difference between input and output) • Size: 54x29x21mm
UPC: 845832033624
• Step DC voltage up or down to maintain stable regulated output
• Suitable for wide range of projects including microcontrollers, LEDs, automotive, computer and all kinds of other DC power applications
• Includes heatsink • Input undervoltage protection • Output short-circuit protection circuit • Dual-stage output filtering • Input fuse
• Input: 4.5-30V DC • Output Voltage: 0.5-30V • Max Output Current: 3A • Max Power: 30W (60W with a cooling fan) • 180KHz Switching Frequency • ＜30mV Output ripple • Efficiency: boost 87-91%, buck 86-90% (depending on the voltage difference between input and output) • Size: 54x29x21mm
