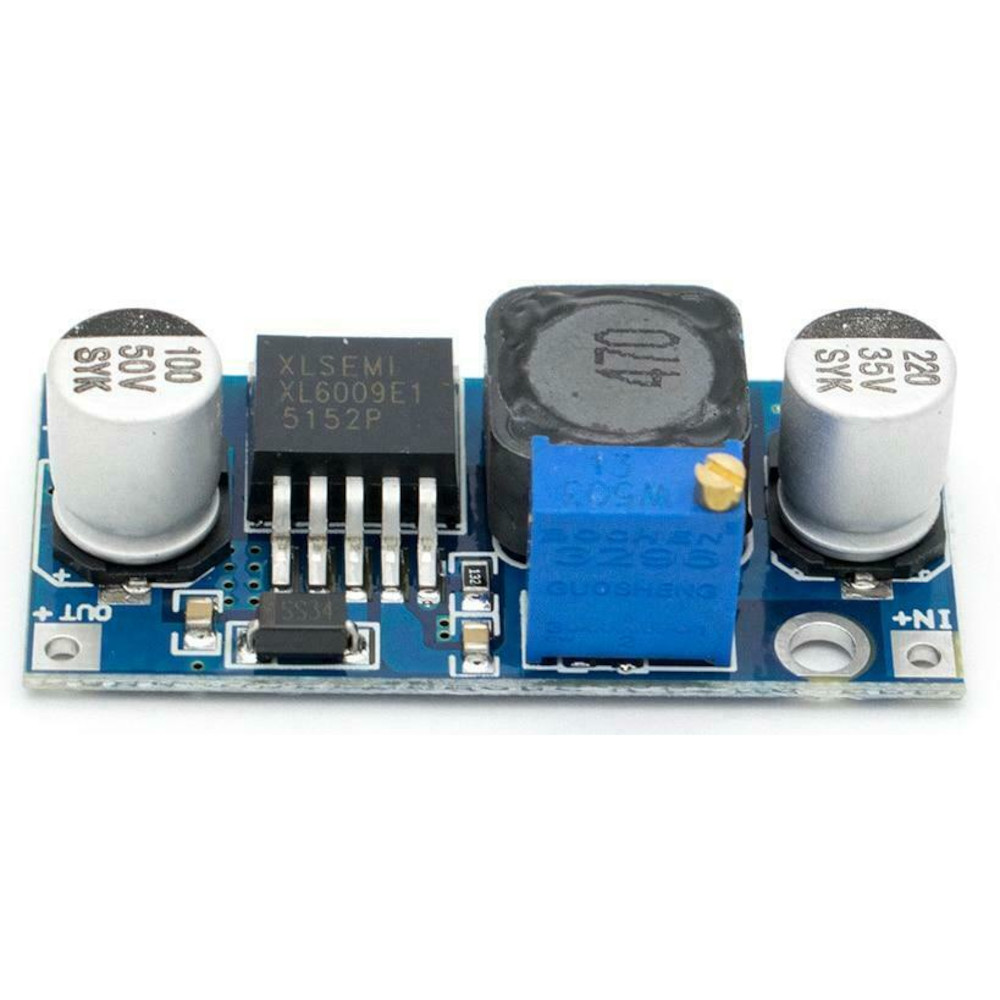

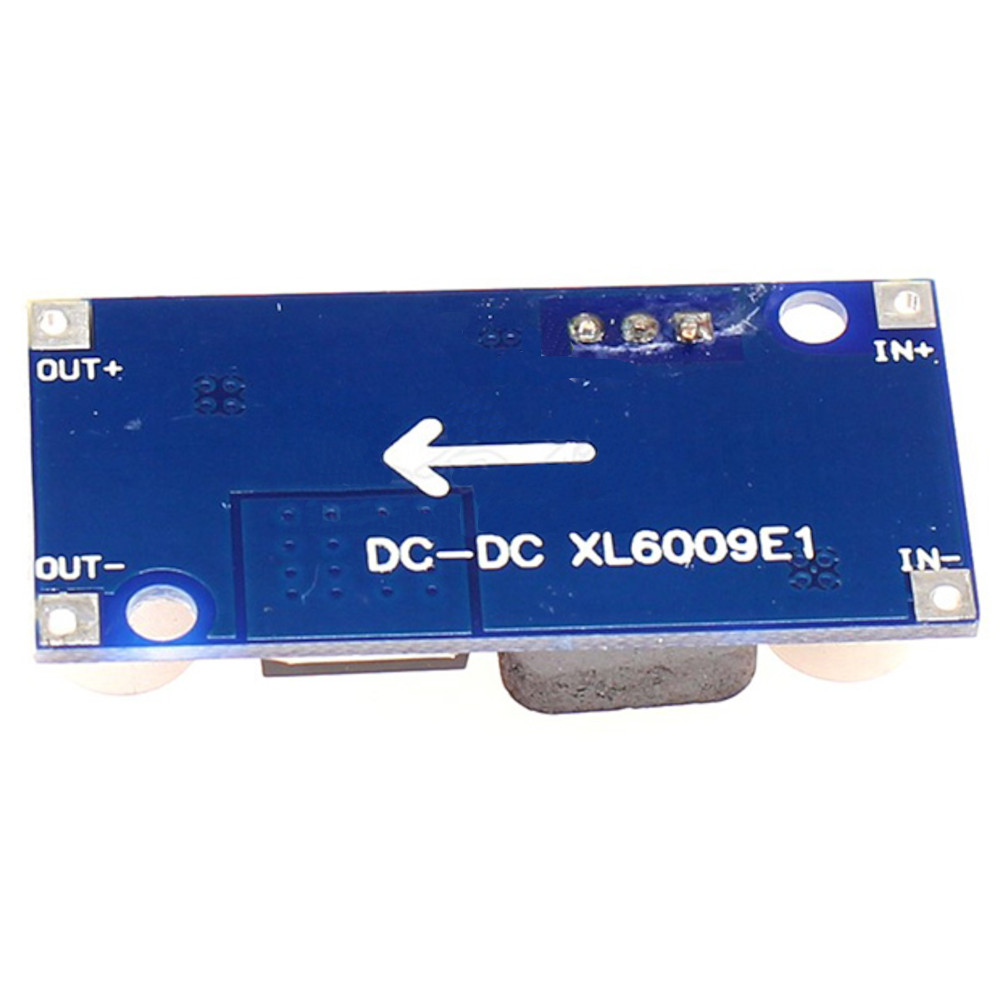

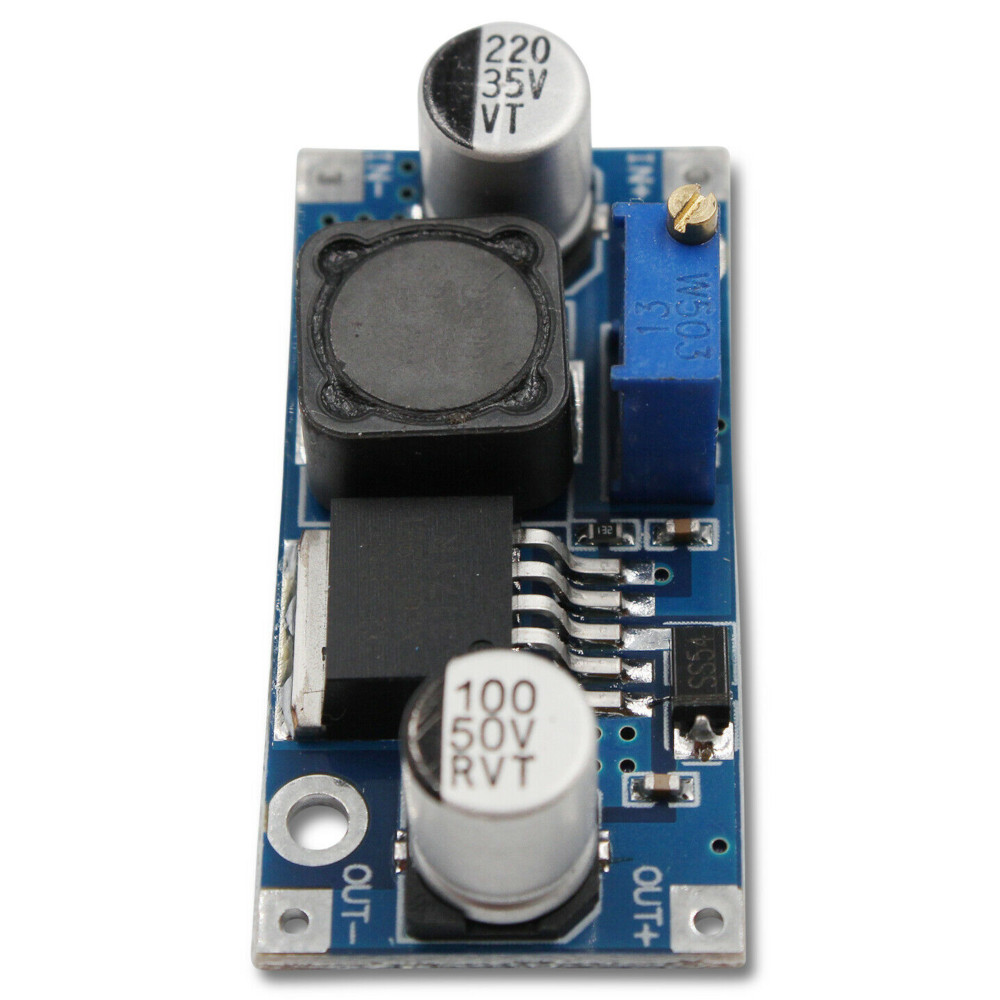

XL6009 2A Boost Module DC-DC Adjustable Step Up Voltage Converter Power Supply
Price
$4.99FREE SHIPPING ✈️
SKU: DCMOD-T
UPC: 845832033648
• It may be necessary to turn the potentiometer up to 15 times before the output voltage changes • This is a boost module, the output voltage must be greater than input voltage
• Boost voltage to a stable regulated output. Useful for a wide range of applications, such as powering 5V USB devices from a 3.7V lithium cell, powering higher powered electronics from a 12V battery, and a wide range of automotive and electronic projects • Constant voltage regulation, suitable for LED strips and modules, but not for raw LEDs
• The XLSEMI XL6009 boost regulator IC has an integrated MOSFET, over-temperature protection, and over-current protection
• Input: 4-32V DC • Output Voltage: 5-35V • Output Current: 2A • 20W Maximum Power • 400KHz Switching Frequency • ＜50mV Output ripple • ±0.5% Load Regulation • Up to 94% efficiency (depending on the voltage difference between input and output) • Size: 40x20x12mm
• XL6009 Datasheet: https://www.jacobsparts.com/files/XL6009.pdf
