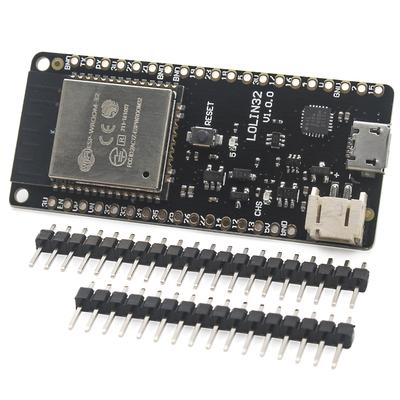

LoLin32 ESP32 WiFi & Bluetooth Development Board CP2104 w/ Lithium Battery Connnector
Price
$8.95FREE SHIPPING ✈️
SKU: DEVBOARD-F
UPC: 845832031767
• ESP32 Module: ESP-WROOM-32 • 240MHz dual core microprocessor • 4MB SPI flash memory
• 32 Inputs / Outputs: 26x Digital I / O (3.3V) All outputs can be PWM • 18x analog inputs • 3x UART • 3x SPI • 2x I2S • 2x DAC • 2x I2C
• Sleep Mode Consumption: 5 μA • Integrated sensors: Hall Effect, 10x inputs for capacitive touch interface
• CP2104 USB serial interface chip for simple communications and programming
• Powered via USB and optionally via an attached lithium battery • JST PH 2.0 battery connector • 500mA maximum charging current • dedicated charge indicator LED
Note: It may help with flashing to install a 10kΩ resistor between GPIO-0 and GND.
