WT32-ETH01 ESP32 Module Ethernet WiFi Bluetooth Development Board 100Mbps RJ45
Price
$15.99FREE SHIPPING ✈️
SKU: DEVBOARD-G
UPC: 845832032344

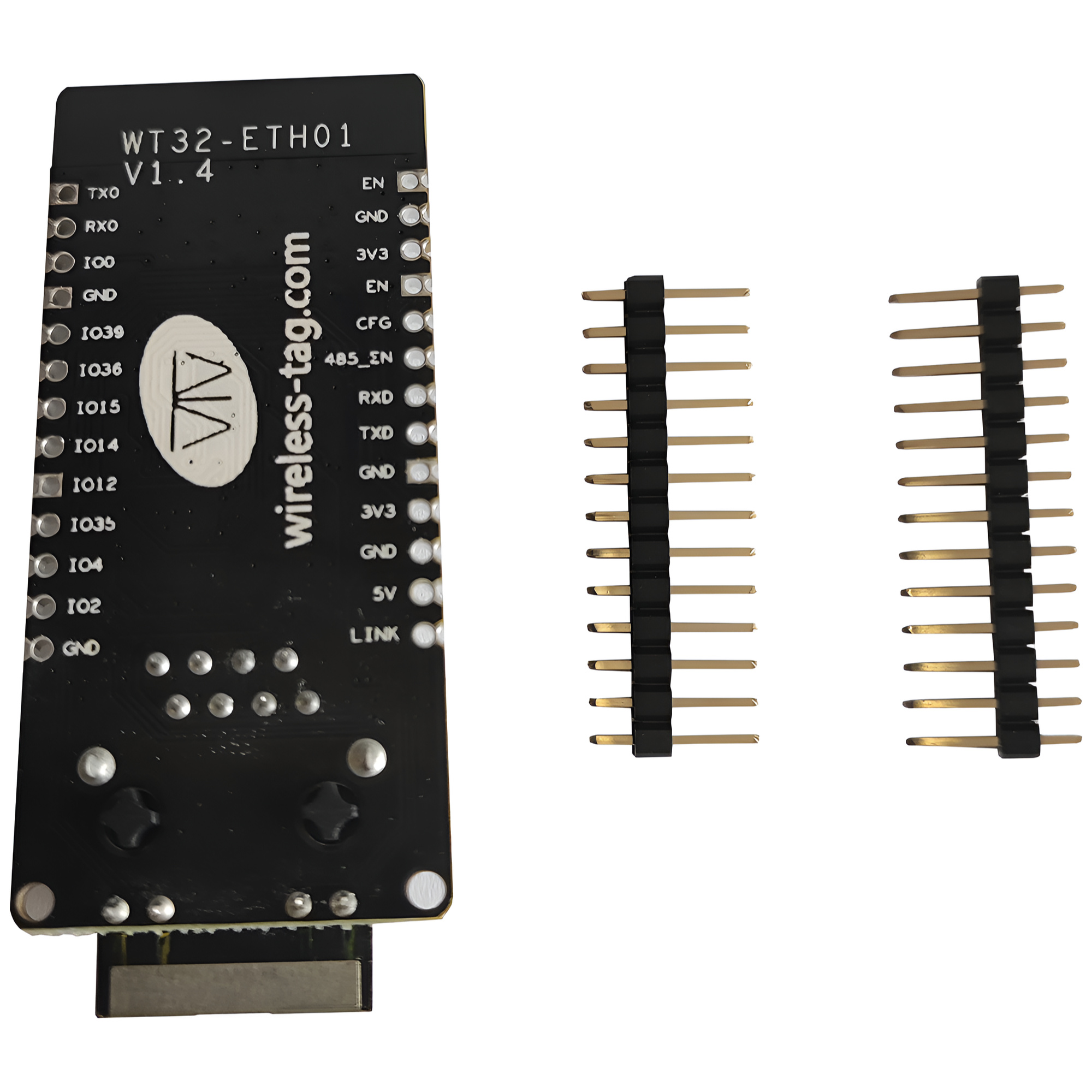

• ⚠️ The issue with the top soldered pins has been resolved, they are now shipping with separate unsoldered pins • WT32-ETH01 is an embedded serial to Ethernet module based on the ESP32 series WT32-S1 MCU. The module integrates an optimized TCP/IP protocol stack, which is convenient for users to easily complete the networking functions of embedded devices while reducing development time cost. In addition, the module is compatible with half-pad and through-hole connectors.
• The board width is a universal width and therefore, it can be directly soldered to boards, connectors, or even breadboards, which is convenient for users to use in different scenarios.
• ESP32 series IC is an integrated 2.4GHz Wi-Fi and Bluetooth dual-mode SOC, with ultra-high RF performance, stability, versatility and reliability, as well as ultra-low power consumption.

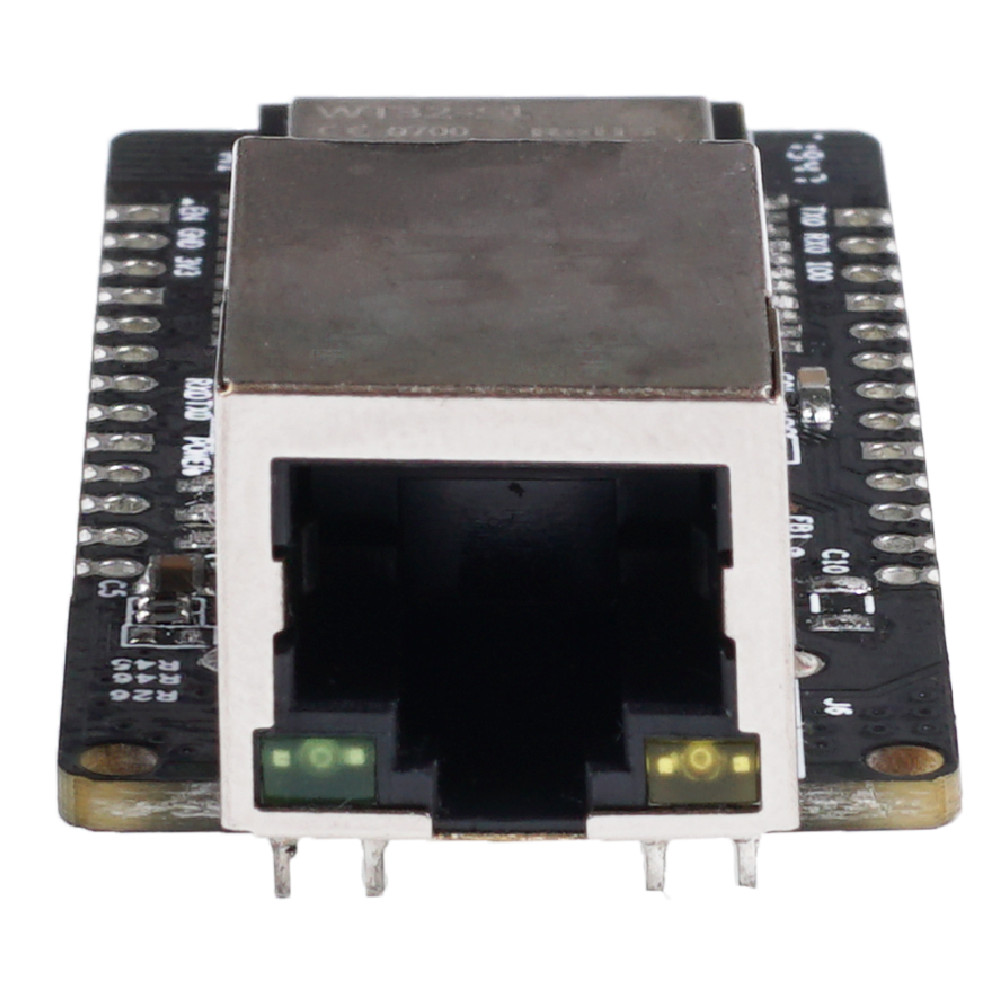

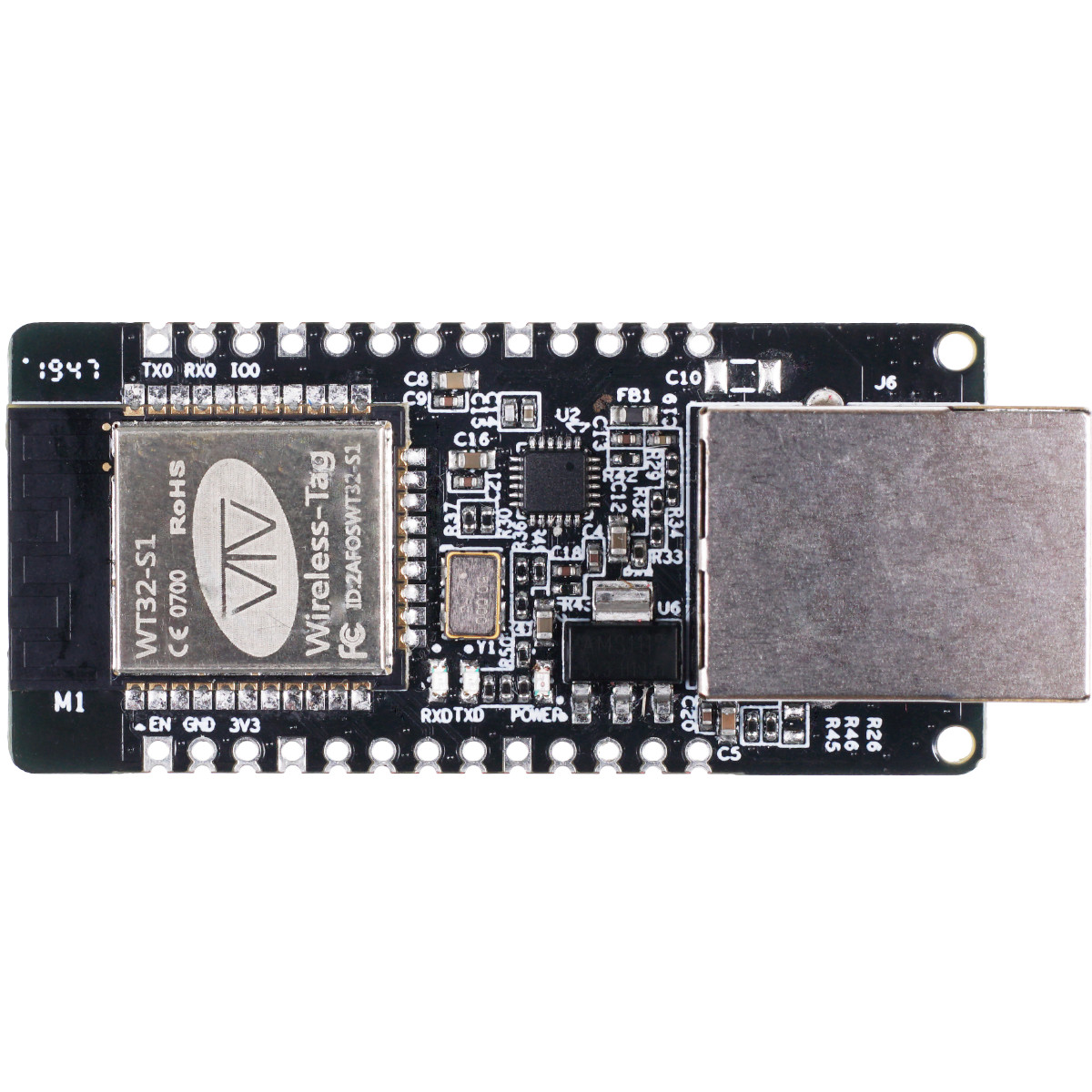

• ESP32 Module: WT32-S1 • 240MHz dual core microprocessor • 4MB SPI flash memory • Onboard 10/100Mbps RJ45 Ethernet (LAN8720A PHY) • 802.11n WIFI • Bluetooth 4.2
• Data sheet: https://www.jacobsparts.com/static/images/WT32-ETH01_datasheet_V1.4.pdf
UPC: 845832032344
• ⚠️ The issue with the top soldered pins has been resolved, they are now shipping with separate unsoldered pins • WT32-ETH01 is an embedded serial to Ethernet module based on the ESP32 series WT32-S1 MCU. The module integrates an optimized TCP/IP protocol stack, which is convenient for users to easily complete the networking functions of embedded devices while reducing development time cost. In addition, the module is compatible with half-pad and through-hole connectors.
• The board width is a universal width and therefore, it can be directly soldered to boards, connectors, or even breadboards, which is convenient for users to use in different scenarios.
• ESP32 series IC is an integrated 2.4GHz Wi-Fi and Bluetooth dual-mode SOC, with ultra-high RF performance, stability, versatility and reliability, as well as ultra-low power consumption.
• ESP32 Module: WT32-S1 • 240MHz dual core microprocessor • 4MB SPI flash memory • Onboard 10/100Mbps RJ45 Ethernet (LAN8720A PHY) • 802.11n WIFI • Bluetooth 4.2
• Data sheet: https://www.jacobsparts.com/static/images/WT32-ETH01_datasheet_V1.4.pdf
