D1 Mini NodeMCU and Arduino WiFi LUA ESP8266 ESP-12 WeMos Microcontroller

priya
★★★☆☆
Jun 29, 2022
D1 minis are generally my goto for Arduino development and this one works fine but unfortunately deepsleep consumes too much current (around 3mA vs the expected 0.3mA) on this module.

SKU: ESP8266-D1
UPC: 845832030500

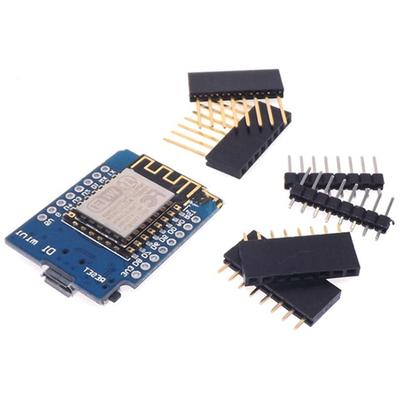

• The D1 Mini is an ESP8266-based microcontroller featuring 11 digital input/output pins, a single analog input pin. It offers the convenience of a micro-USB connection for both power and data (running at 3.3V), and despite its size has built-in WiFi and 4MB of flash memory. It can be programmed with Lua / NodeMCU, MicroPython, and other leading micro-controller development platforms. It supports both serial and OTA programming.
• Includes three types of headers to support various configurations: Female, Male, Long Female
• 5V power from MicroUSB connector is internally converted to 3.3V
• Digital I/O Pins: 11, all pins have interrupt/PWMI2C/one-wire support except D0 • Analog Input: 1 (3.2V max input)
• Dimensions: 34mm x 25,5mm x 6.8mm • Weight: Approx. 5g excluding connectors
