Low-profile Inline Dimmer Switch for LED Strip Light, Black thumbnail thumbnail thumbnail thumbnail

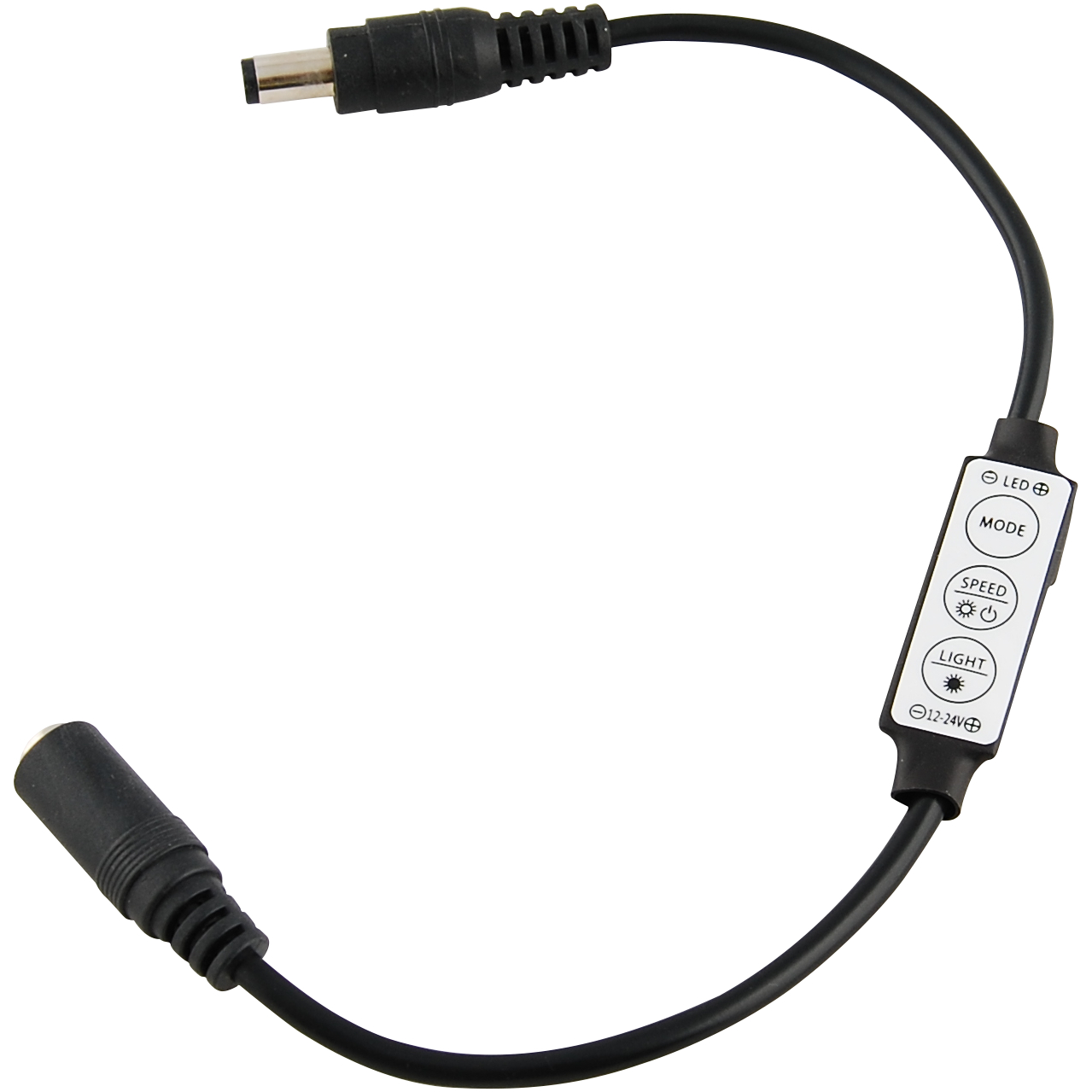

Low-profile Inline Dimmer Switch for LED Strip Light, Black
Volume Pricing

• This inline dimmer switch offers a low-profile way to control LED strip lights. Choose from 8 levels of brightness, turn lights on or off, or choose a dynamic mode for added effect. Installation is simple, just connect it between the driver and the strip. Use this with strip lighting that uses a barrel connector, such as single color ABI LED strip light kits.
• Voltage: 12V, Max Load: 12A (144W)
• Dynamic modes: gradual change, signal light, strobe, breathe, candlelight
• Retains setting after power loss
• Dimensions: 42x12x3mm

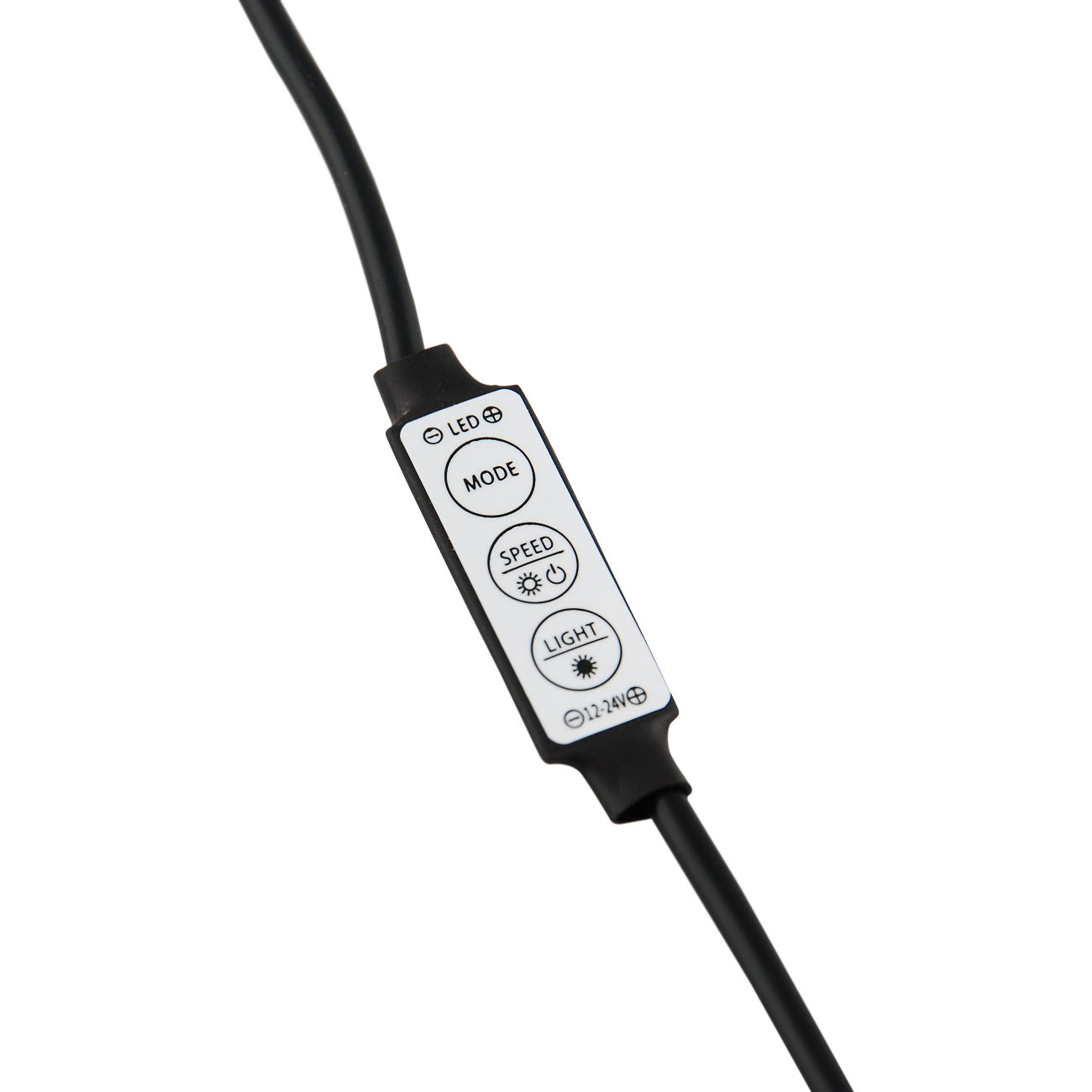

To turn it on quickly press the middle button.
To turn it off press and hold the middle button.
To enable standard dimmer mode, press the lower button once, then you can press the middle button to increase brightness or press the lower button to lower brightness.
To enable one of the dynamic modes press the top button.  There are five dynamic modes.  Switch between them by pressing the top button.  The speed of the dynamic modes can be adjusted by pressing the middle button.  To exit dynamic mode, click the lower button once which switches it back to standard dimmer mode.
