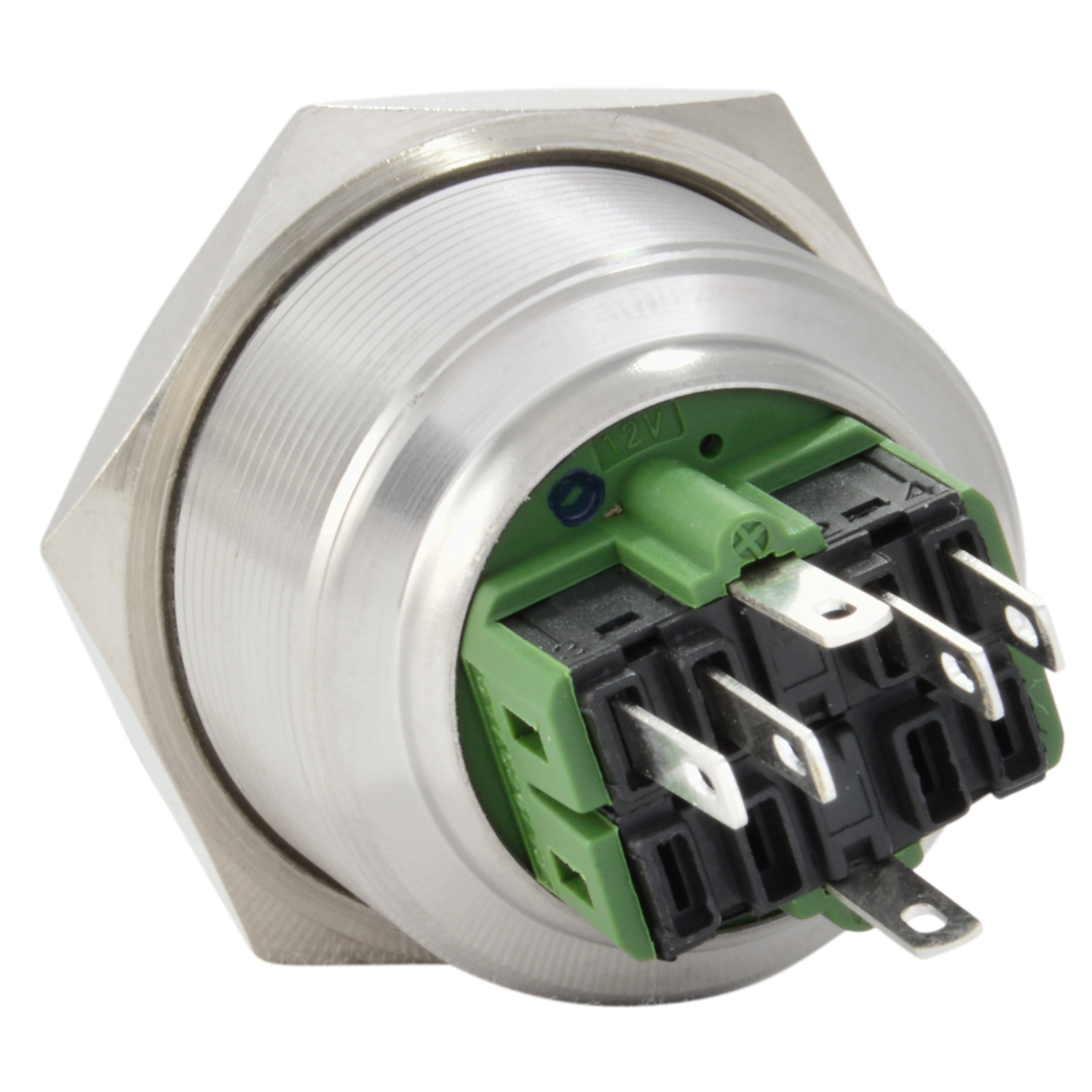

28mm Stainless Steel Momentary Push Button Switch with Blue LED
thumbnail thumbnail thumbnail thumbnail
28mm Stainless Steel Momentary Push Button Switch with Blue LED (product group: )
Bulk Pricing
5+
$19.40
10+
$19.30
25+
$18.55
50+
$17.80
100+
$16.55
Price:
$21.45
Shipping:
FREE
  Quantity
Description
  • Specifications
    Operation Type: Momentary (push the button, ON; release it, OFF)

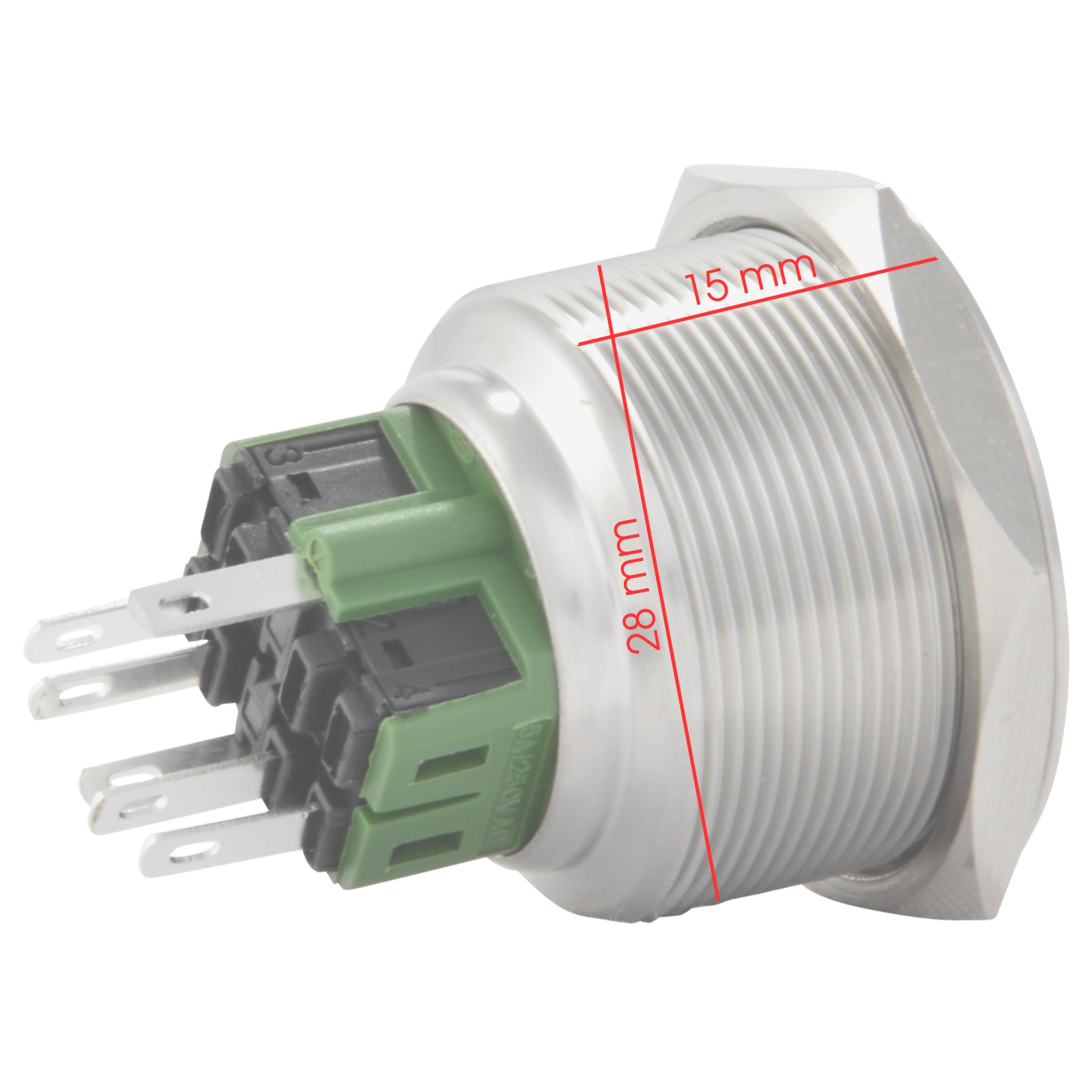

    Panel Cutout Diameter: 1-1/8" (28mm)
    Thread Depth: 3/4" (18mm)
    Faceplate Diameter: 1-1/4" (32mm)
    Total Depth (Including Contacts): 1-11/16" (43mm)
    Max Switch Rating: 250V AC/DC 5A
    LED rating: 12V DC 15mA
    Circuit Type: 1 NO (circuit is normally open/inactive)
    Switch Type: SPST (Single Pole, Single Throw)
    Enclosure Material: Stainless steel
    Protection Level: IP67
    Operation Temperature: -20C to 55C
    • Momentary pushbutton switches may be used in a variety of applications including cars, motorcycles, boats, computers, LEDs, and electronics projects. Use them as a power switch for your computer, a boat horn or starter switches for cars, trucks and other automobiles
    • Constructed of non-oxidizing, corrosion resistant stainless steel
    • Accented with brilliant LED light ring
Features and Specifications
  • Momentary pushbutton switches may be used in a variety of applications including cars, motorcycles, boats, computers, LEDs, and electronics projects. Use them as a power switch for your computer, a boat horn or starter switches for cars, trucks and other automobiles
  • This switch has a protection rating of IP67 waterproof, meaning it can withstand exposure to heavy rain, splashes, etc., without damage
  • The switch and LED are separate. The LED can be on all the time or only when the button is pressed
  • Installation: Cut mounting hole into the panel using a 1-1/8" drill bit. Screw the threaded "neck" of the switch into the panel cutout hole and secure it on the reverse side of the panel with the included metal nut. The included rubber O-ring may optionally be used for additional water resistance by placing the ring between the top of the neck (just behind the faceplate) and the front of the panel. Package includes switch, metal nut and rubber O-ring
  • Operation Type: Momentary (push the button, ON; release it, OFF), Max Switch Rating: 250V AC/DC 5A, LED rating: 12V DC 15mA, Panel Cutout Diameter: 1-1/8" (28mm)
