RJ45 RJ11 Network Cable Tester LAN Patch Cable Testing Kit
• Test Ethernet cables for continuity, open, shorted and crossed wire pairs. Visible LED status display.
• Cable Type: RJ45 LAN cable
• Connectors: Ethernet Cat 5, Ethernet Cat 5e, Ethernet Cat 6, Ethernet Cat 7, RJ45 8P
• Power Source: DC 9V Battery Included

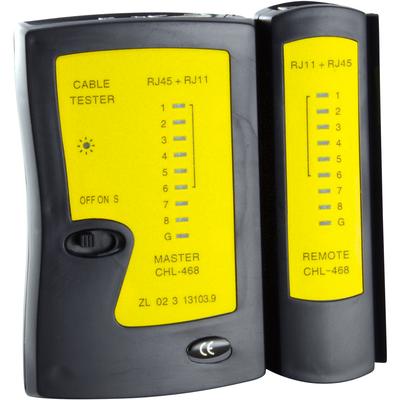

The NT-468 Network Cable Tester tests the functionality of network cables with twisted pair, straight and crossover wire configurations. Resolving network connectivity issues is often a mere process of elimination. This network cable tester helps determine determine whether or not a network cable is the source of the problem.
To use, connect one end of the network cable to the "Master" controller and the other end to the "Remote". Turn the switch found on the Master controller to the on position to begin testing. If the network cable is working properly, the Master controller and the Remote will illuminate sequentially with green lights. When testing cables with RJ-11 connectors, lights 1 through 6 should illuminate. When testing cables with RJ-45 connectors, lights 1 through 8 should illuminate.
