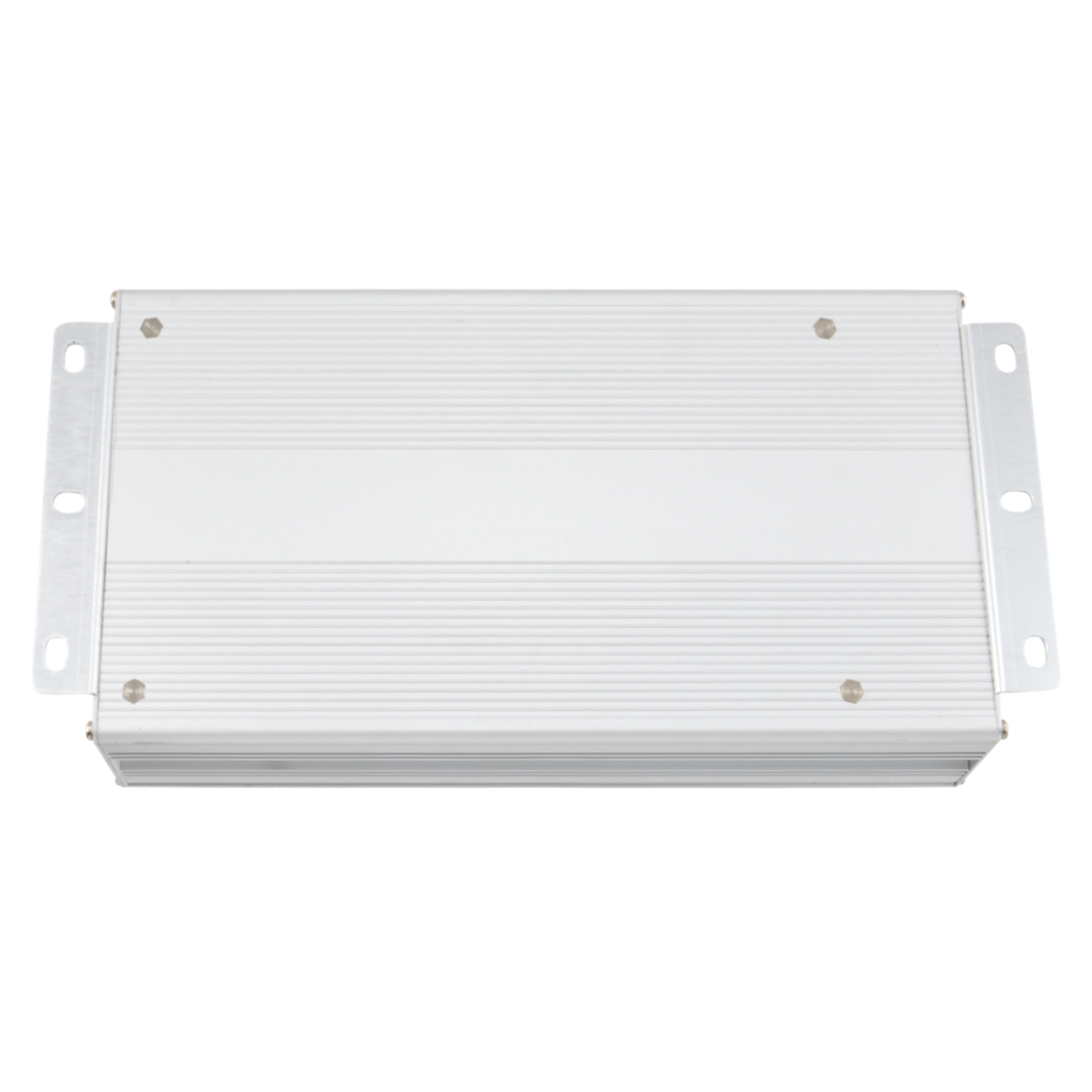

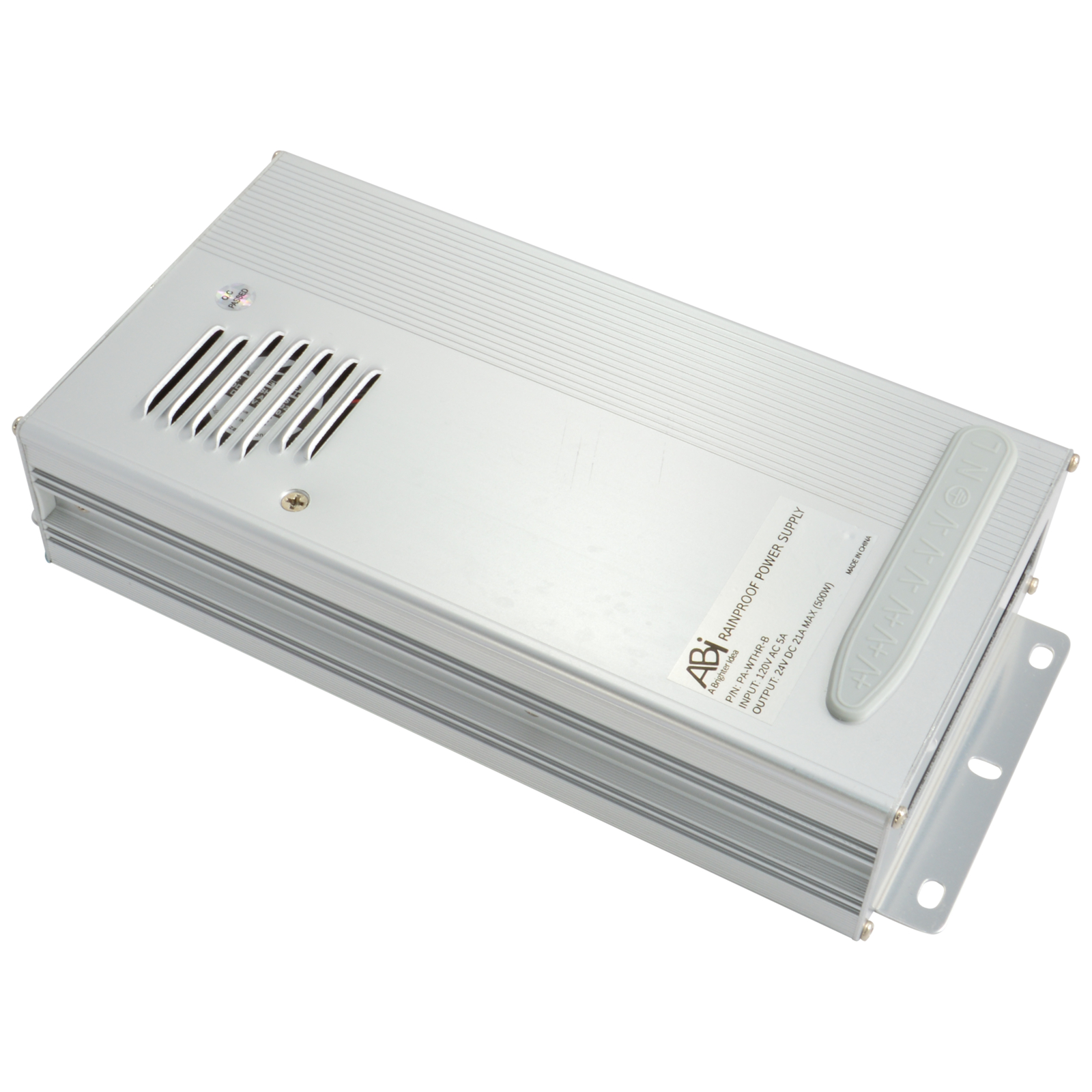

ABI 24V 500W Power Supply Indoor Outdoor LED Driver Rainproof Weatherproof 21A
thumbnail thumbnail thumbnail thumbnail
ABI 24V 500W Power Supply Indoor Outdoor LED Driver Rainproof Weatherproof 21A (product group: )
Bulk Pricing
5+
$28.95
10+
$27.80
25+
$27.15
50+
$27.05
Price:
$32.95
Shipping:
FREE
  Quantity
Description
  • Power LED lights indoors and out with the ABI 24V 500W rainproof power supply. This single-rail direct wire power supply has three sets of output terminals for directly wiring multiple lights. The thick aluminum rainproof housing provides basic protection from the elements when mounted in a vertical position. A built in cooling fan provides plenty of airflow over the circuit board ensuring long service life. This solid and attractive power supply is built from quality components. The constant voltage 24V DC power output is suitable for powering any 24V DC device. This is not a fully waterproof product and should not be used near pools or in places where it may be sprayed by jets.

    Input voltage note: This power supply is configured for 110V AC input. It is possible to configure it for 220V operation, but the entire case must be disassembled to access the switch.

    Wiring safety: 500W is a lot of power. Use appropriately sized wires to avoid dangerous overheating of the wire. 16 AWG copper wire is recommended for the AC input. The DC output can go as high as 21 amps, which can quickly turn underrated wire into a burning hot element. The DC wire needs to be appropriately sized for the load. Check the product specifications or measure the current with a multimeter and research wire size to choose the appropriate wire. It never hurts to oversize the wires.

    Input Power: 110/120VAC (can also be configured for 220/240V operation)
    Output Power: 24VDC 21A Max. (500W)

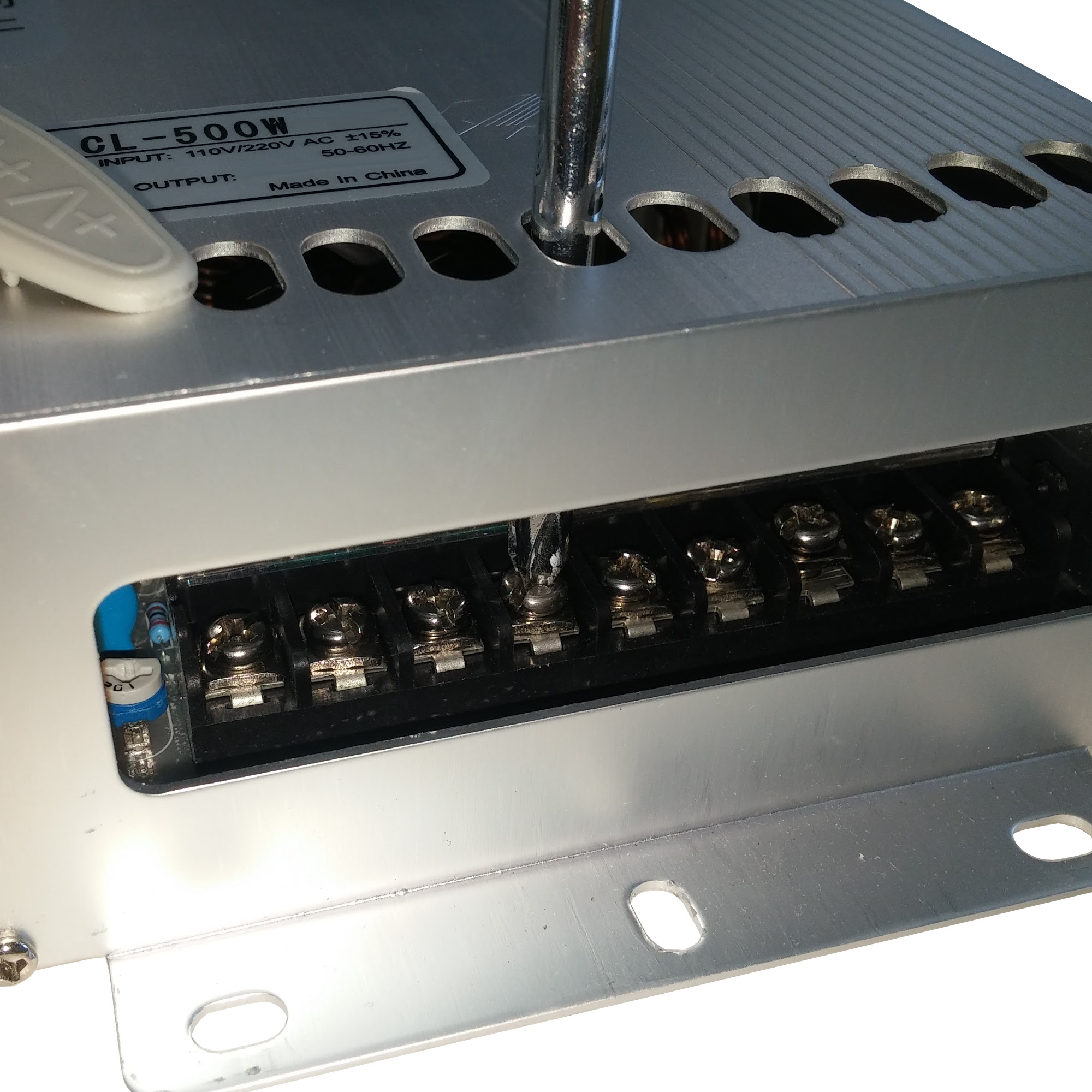

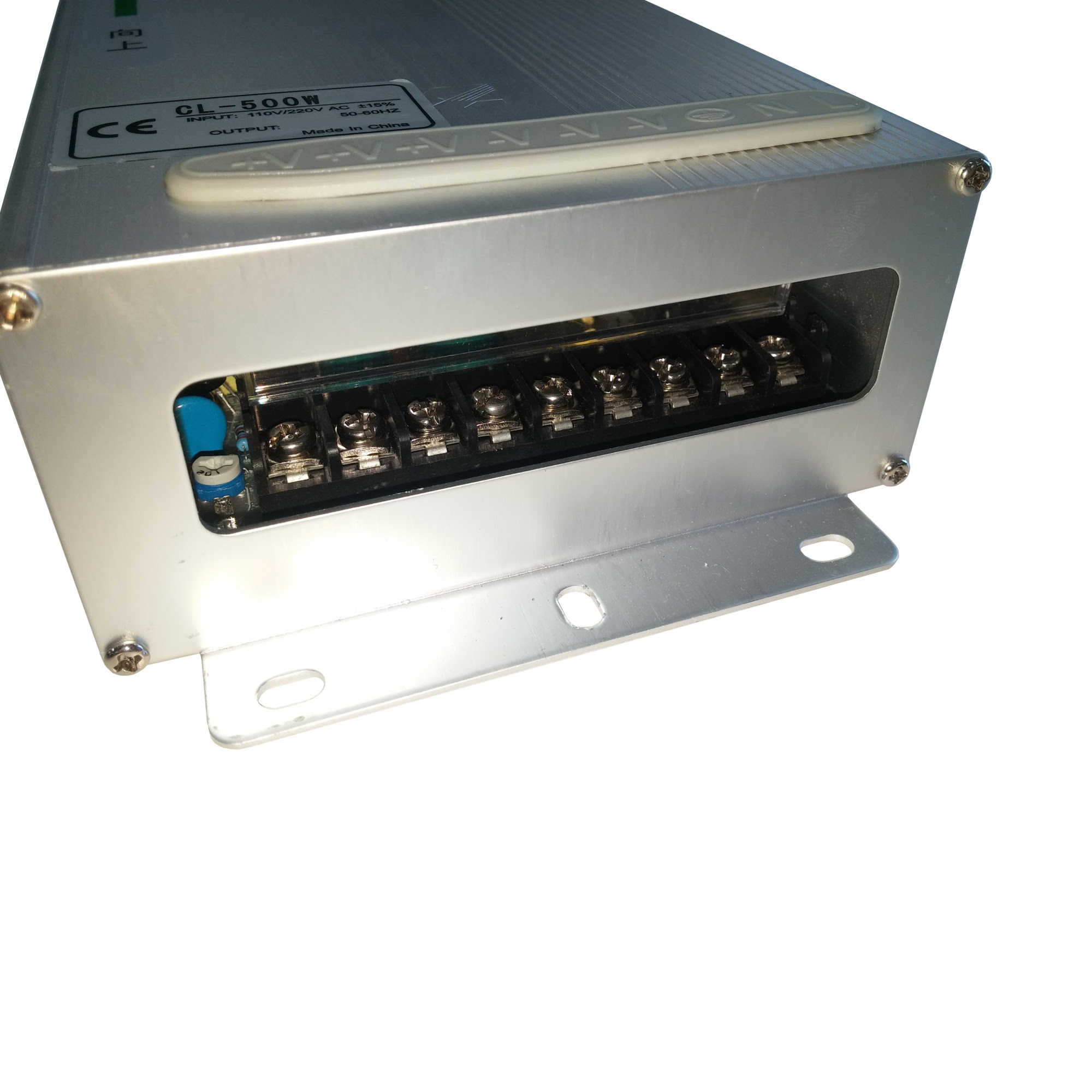

    Connection Type: Direct wire screw terminal block
    Power Input Terminals: 3 (Ground, N-Neutral, L-Load/Hot)
    Power Output Terminals: 6 (+,+,+,-,-,-) [single rail]
    Size: 220x120x55mm
    Power conversion efficiency: 82%
    Power factor: 0.9
    Ambient operating temperature: -22°F - 140°F
    Active cooling
    Short circuit and over-current protection
    Non-dimmable
Features and Specifications
  • Power LED lights indoors and out with the ABI 24V 500W rainproof power supply.
  • Thick aluminum rainproof housing provides basic protection from the elements when mounted in a vertical position.
  • Input: 110VAC, Output: 24V 21A Max (500W)
  • Direct wire screw terminals, single rail output, three sets of output terminals.
  • Active cooling, short circuit protection, over-current protection.
  • For use with LED lights only
