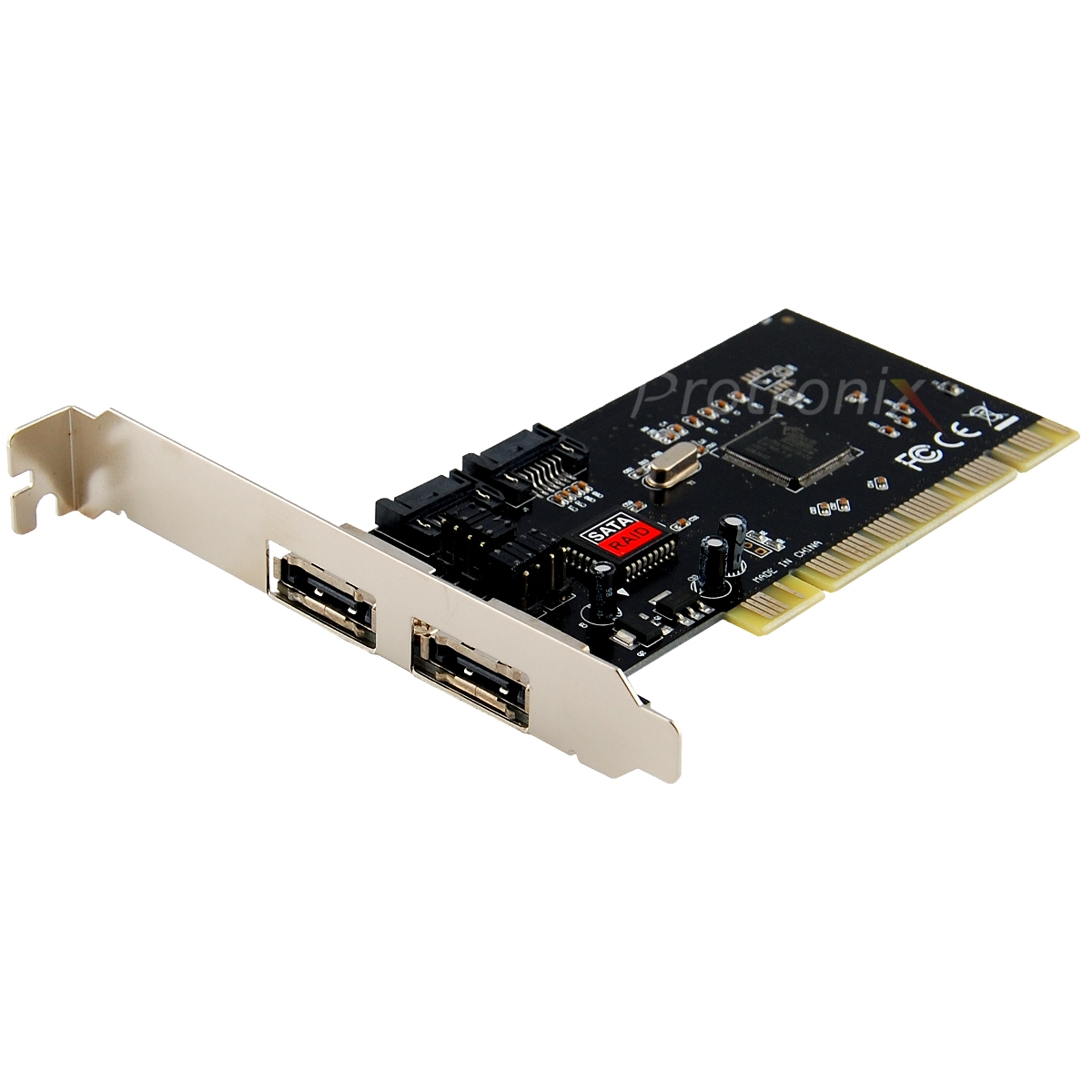

4-Port eSATA + SATA II Combo PCI RAID Controller Card (2+2)
Description

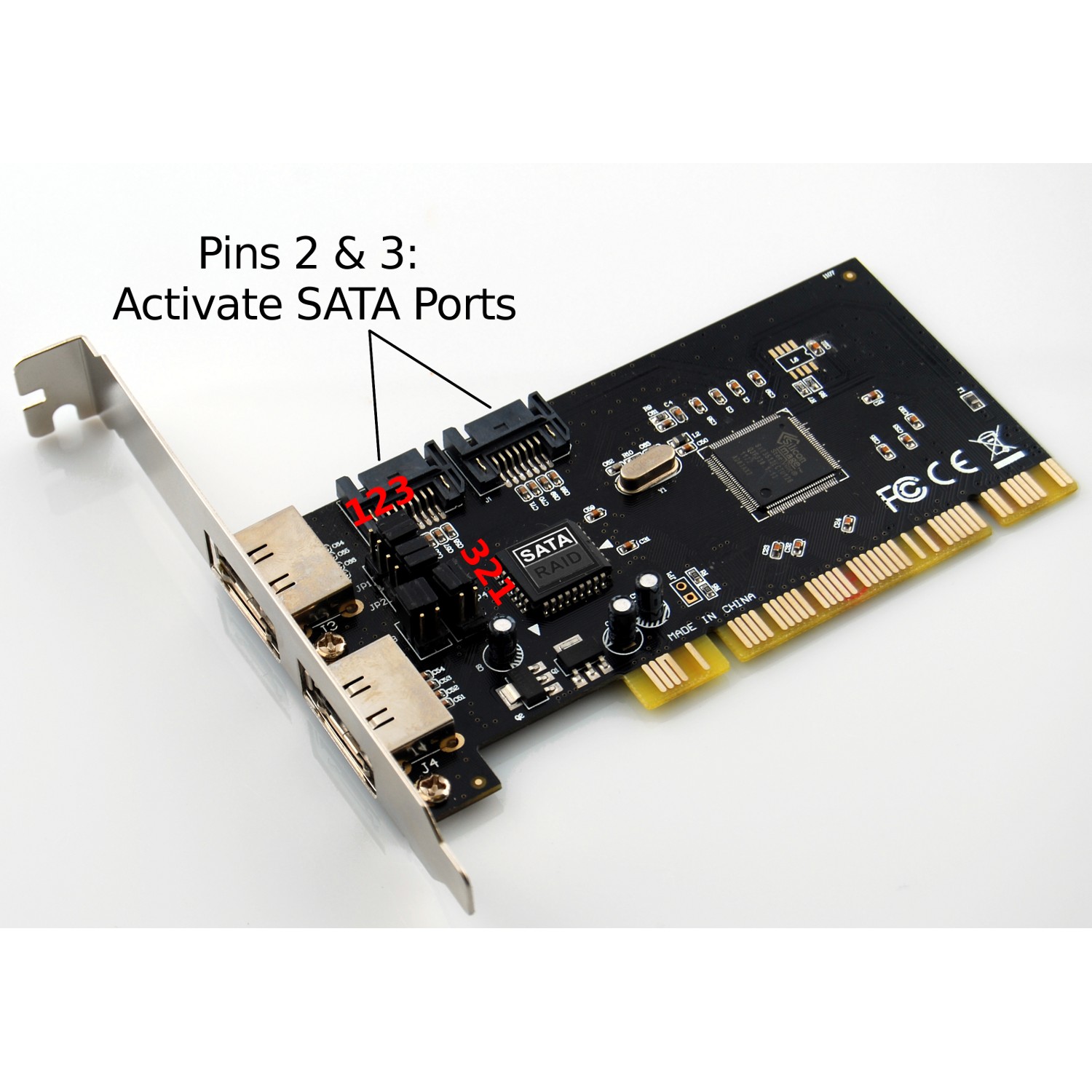

- This PCI host controller card allows you to expand the storage capacity of your computer by adding additional hard drives. The eSATA ports allow you to connect hard drives to your computer externally while achieving full 1.5Gbps internal speed. The two SATA ports can optionally be used for internal hard drives by activating the on-board jumper switch. Note: Control of the two independent SATA channels is directed to either the internal ports or external ports; simultaneous use of eSATA and SATA ports is not supported.
Features and Specifications
- Supports software RAID 0 and RAID 1
- Supports co-exist RAID set and Non-RAID HDD
- Data Transfer Rate: Up to 1.5Gbps
- Internal Ports: 2x SATA
- External Ports: 2x eSATA
- Host Interface: PCI
- Chipset: Silicon Image SIL3512A
- Regulatory Approvals: FCC, SATA, CE
Package
- 1x eSATA + SATA PCI Controller Card

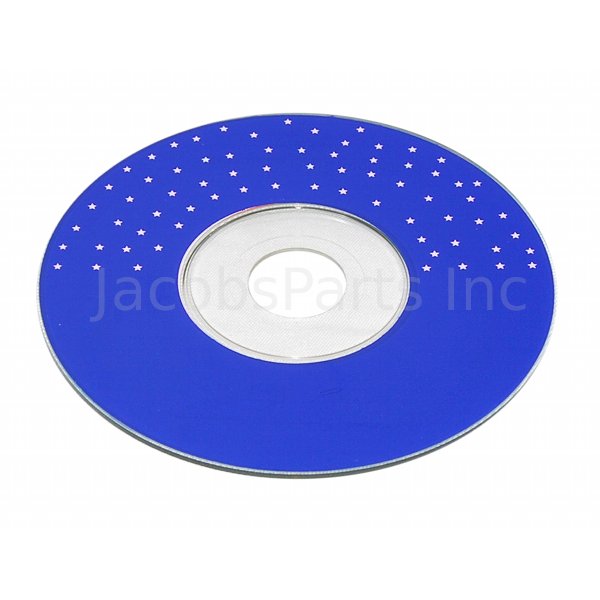

- 1x Installation CD (Supports Windows 2000/XP)
- 1x User Manual
