4-Port eSATA + SATA II PCI-Express Combo RAID Controller Card (2+2)
Description

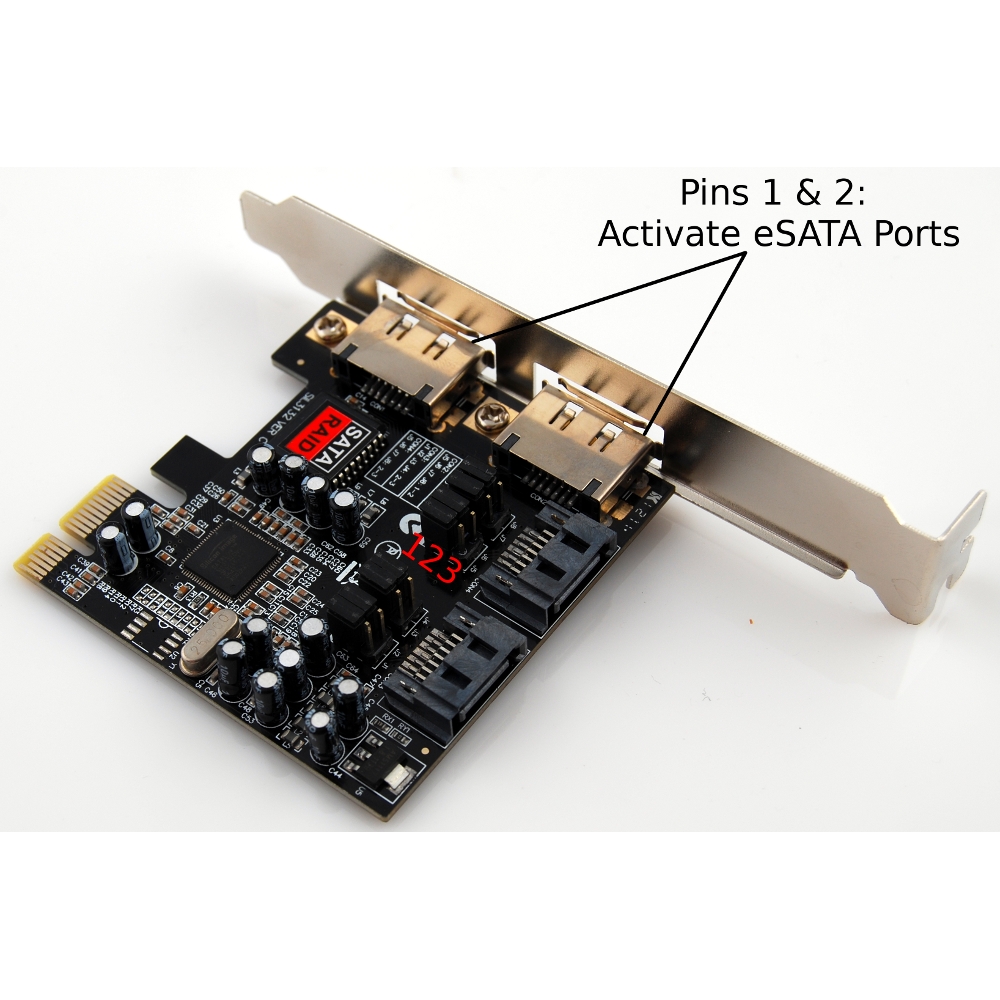

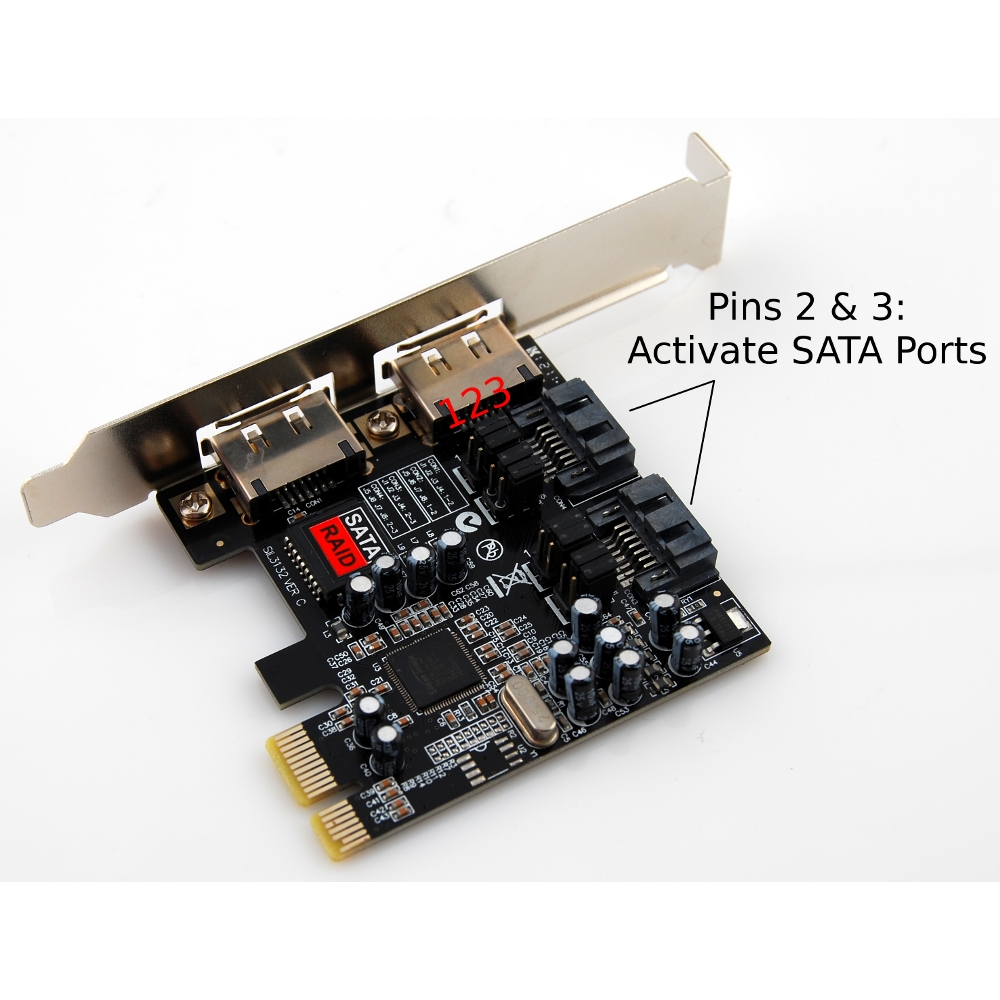

- This PCI Express host controller card allows you to expand the storage capacity of your computer by adding additional hard drives. The eSATA ports allow you to connect hard drives to your computer externally while achieving full 3Gbps internal speed. The two SATA ports can optionally be used for internal hard drives by activating the on-board jumper switch. Note: Control of the two independent SATA channels is directed to either the internal ports or external ports; simultaneous use of eSATA and SATA ports is not supported.
Features and Specifications
- Supports software RAID 0 and RAID 1
- Supports co-exist RAID set and Non-RAID HDD
- Data Transfer Rate: Up to 3Gbps
- Internal Ports: 2x SATA
- External Ports: 2x eSATA
- Host Interface: PCI Express (PCIe)
- Chipset: Silicon Image SIL3132
- Regulatory Approvals: FCC, SATA, CE
Package
- 1x PCI Express Controller Card

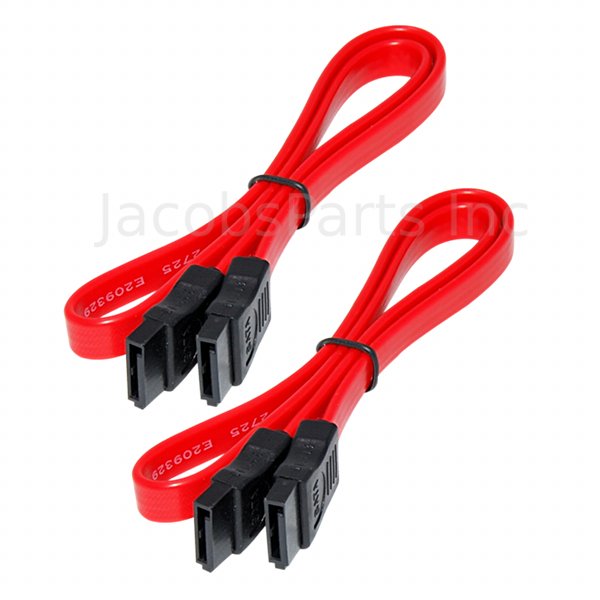

- 2x SATA Cable
- 1x Molex to SATA Power Cable
- 1x Installation CD
