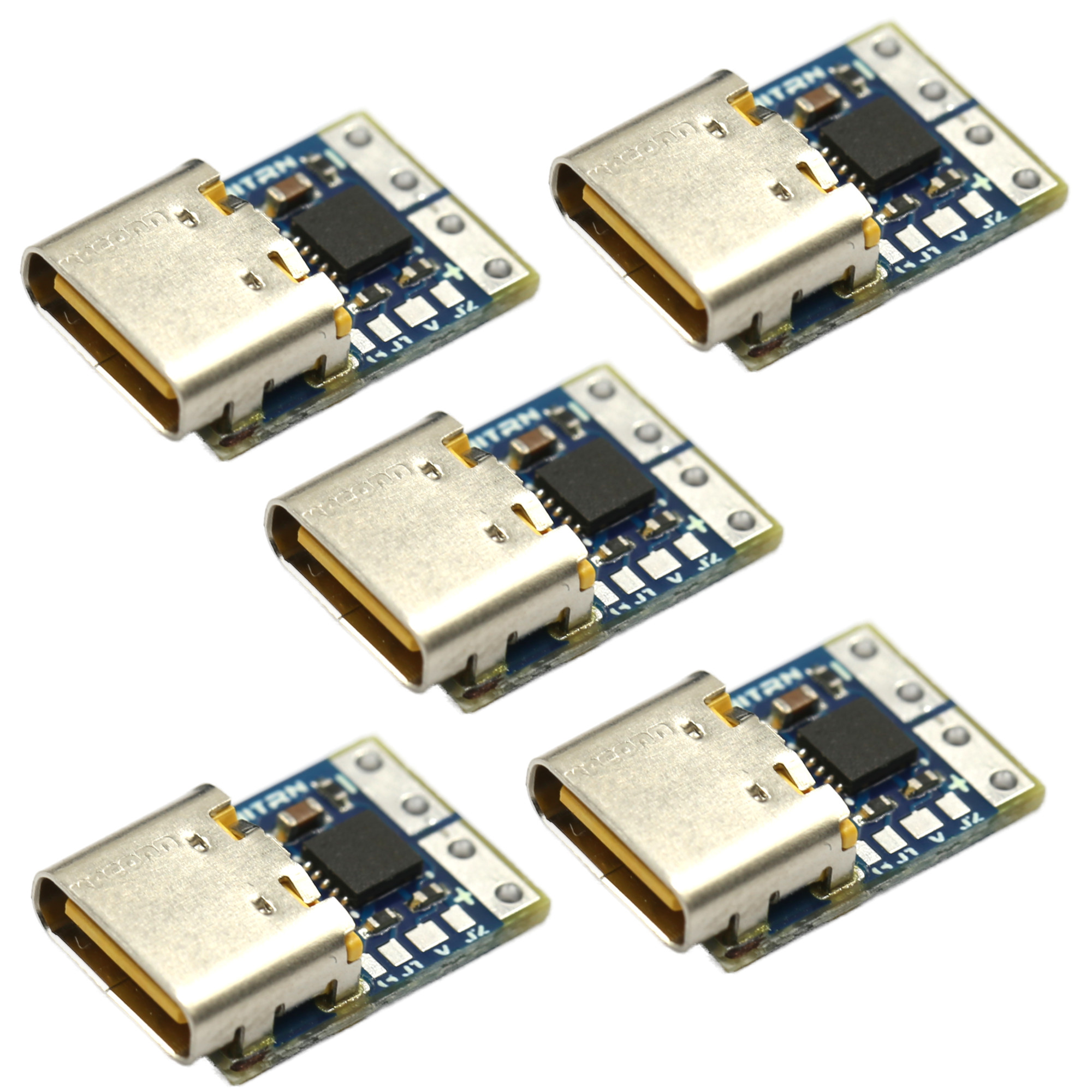

JacobsParts USB-C PD 20V DC Fixed Voltage Power Trigger Module 5A Type-C Female Input
Price
$5.00FREE SHIPPING ✈️
praneeth03
★★★★★
Apr 16, 2024
Good module - provides regulated voltage
★★★★★
Apr 16, 2024
Good module - provides regulated voltage
priya
★★★★★
May 22, 2022
Tiny, but very powerful - at 3A draw generated very little heat.
★★★★★
May 22, 2022
Tiny, but very powerful - at 3A draw generated very little heat.
SKU: POWTRIG-F-20V
UPC: 845832031873
• 20V version can be converted to 5V/9V/12V/15V by soldering pads as shown in the photos
• Power an electronic project or convert old hardware to use USB-C power input
• Performs PD power negotiation • Supports up to 5A
• Not all USB-C power supplies can support all voltages • If the power supply does not support the requested voltage then the next lowest voltage will be provided • The module just performs the PD negotiation and passes the output
• In order to use over 3A you will need to use an electronically marked Type-C cable • A real USB PD power source is required, will not work with QC-only chargers
