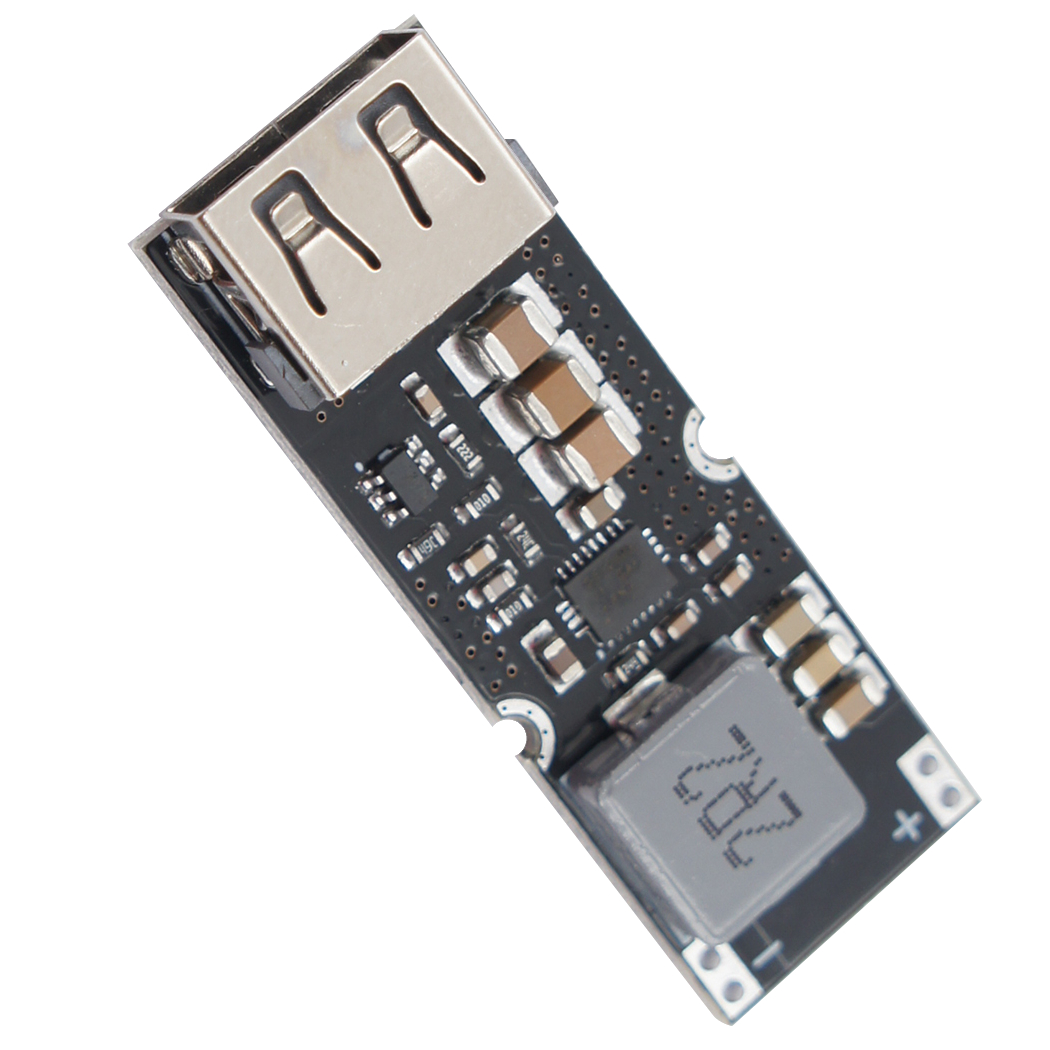

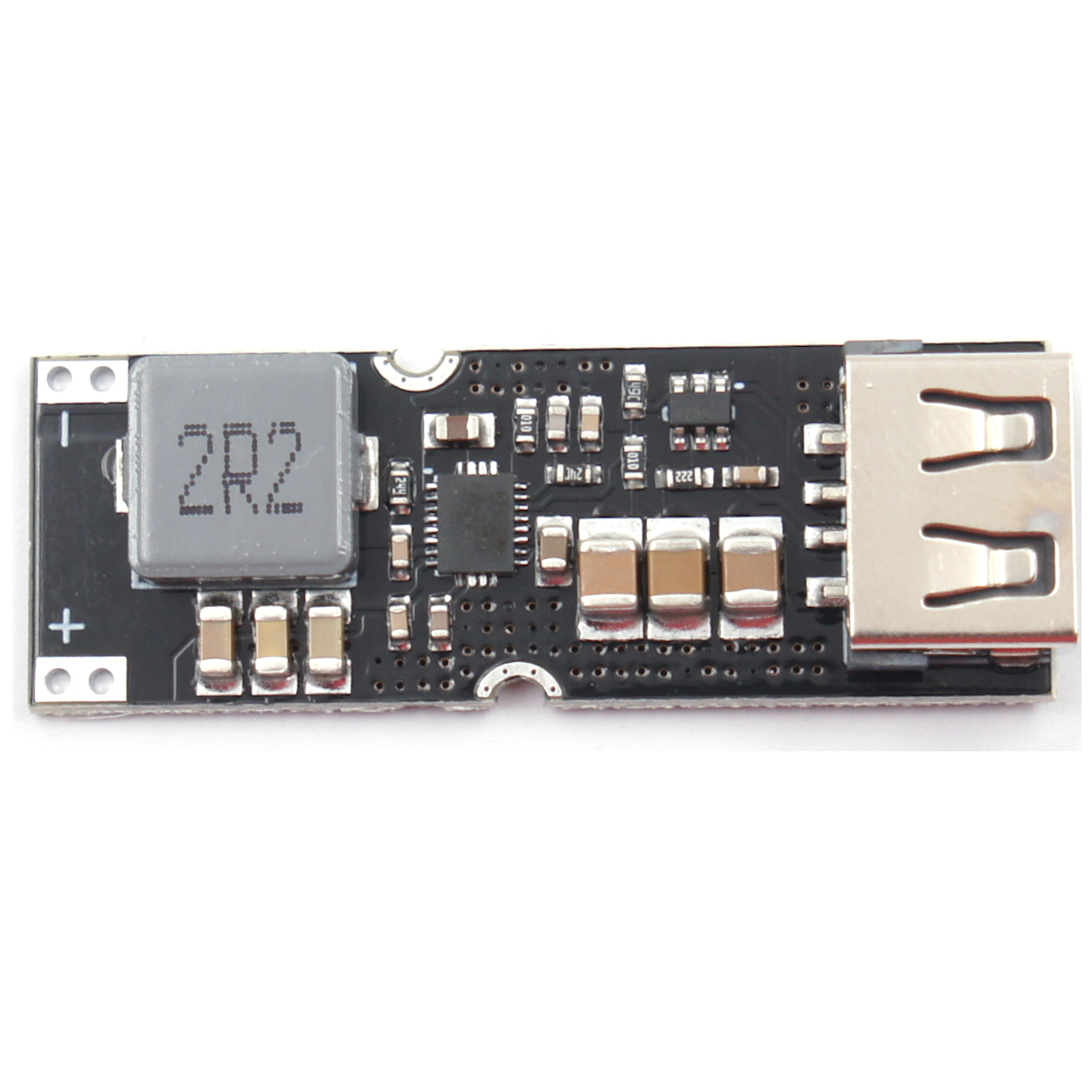

24W USB Fast Charge QC 3.0 Boost Module 3.7V Battery Input 5V 9V 12V Output DIY Power Bank
SKU: USBMOD-E
UPC: 845832031958
• Fast charge USB devices at up to 24W
• Input: 2.8-4.5V DC 8A (suitable for LiPo and Li-ion cells) • 24W Max Output: 5V3A, 9V2A, 12V2A (adaptive output current)
• Fast charge protocol support: QC 2.0, QC 3.0, Huawei FCP, DCP
• Up to 93% efficiency
• Size: 47.5x16.5x8mm • Boost control chip: TPS61088A • Charge control chip: FP6601Q
UPC: 845832031958
• Fast charge USB devices at up to 24W
• Input: 2.8-4.5V DC 8A (suitable for LiPo and Li-ion cells) • 24W Max Output: 5V3A, 9V2A, 12V2A (adaptive output current)
• Fast charge protocol support: QC 2.0, QC 3.0, Huawei FCP, DCP
• Up to 93% efficiency
• Size: 47.5x16.5x8mm • Boost control chip: TPS61088A • Charge control chip: FP6601Q
