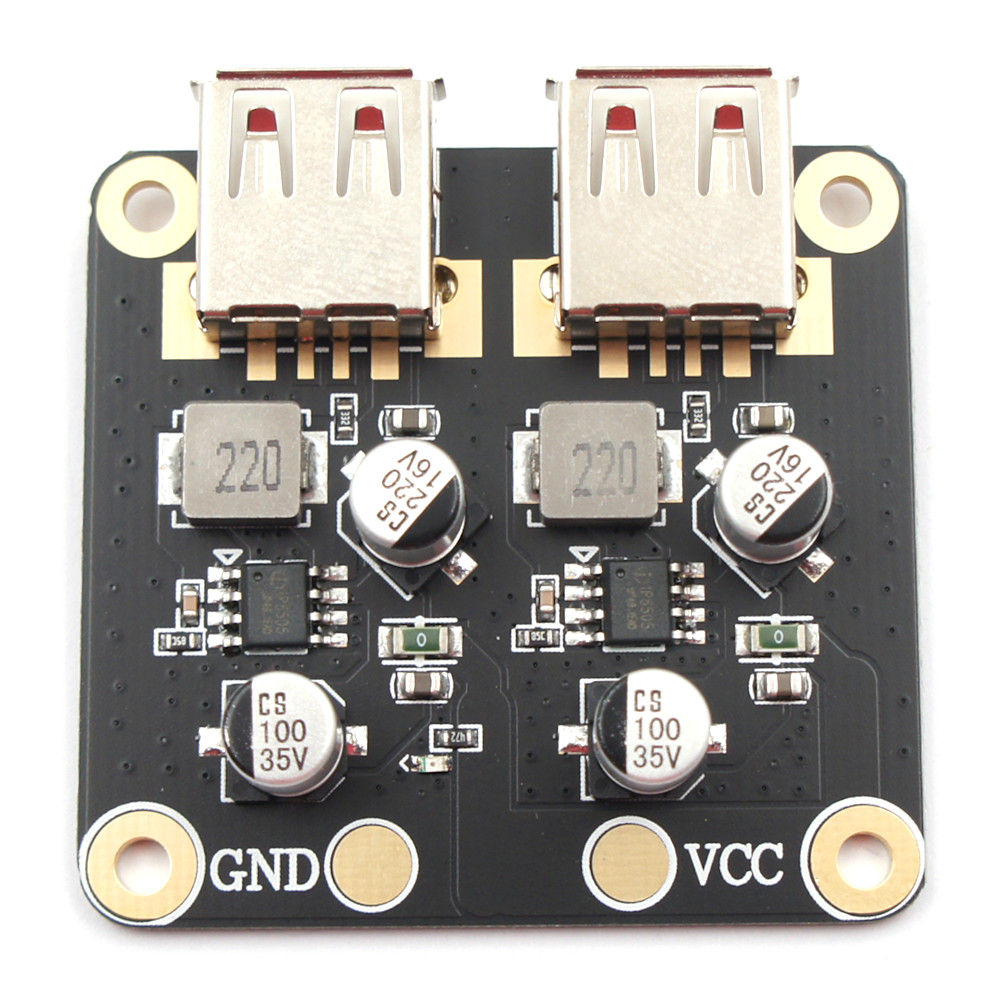

48W Dual USB QC 3.0 Fast Charge Step-down Buck Module Power 12V 24V DC Input
Price
$6.49FREE SHIPPING ✈️
SKU: USBMOD-M
UPC: 845832032030
• Turn any 6-30V DC power source into a USB Fast Charger
• Output: 2x24W (5V 3.4A / 9V 2.5A / 12V 2A) per port • Size: 46x46x5mm
• 90-97% conversion efficiency depending on the voltage difference between input and output
• Supports multiple fast charging protocols: QC 2.0/3.0, BC 1.2, MTK PE1.1/PE2.0, AFC, SFCP
• 220kHz Switching Frequency • Heat Dissipating PCB • Over-voltage protection • Under-voltage Protection • Over-current Protection • Short Circuit Protection • Thermal Protection
