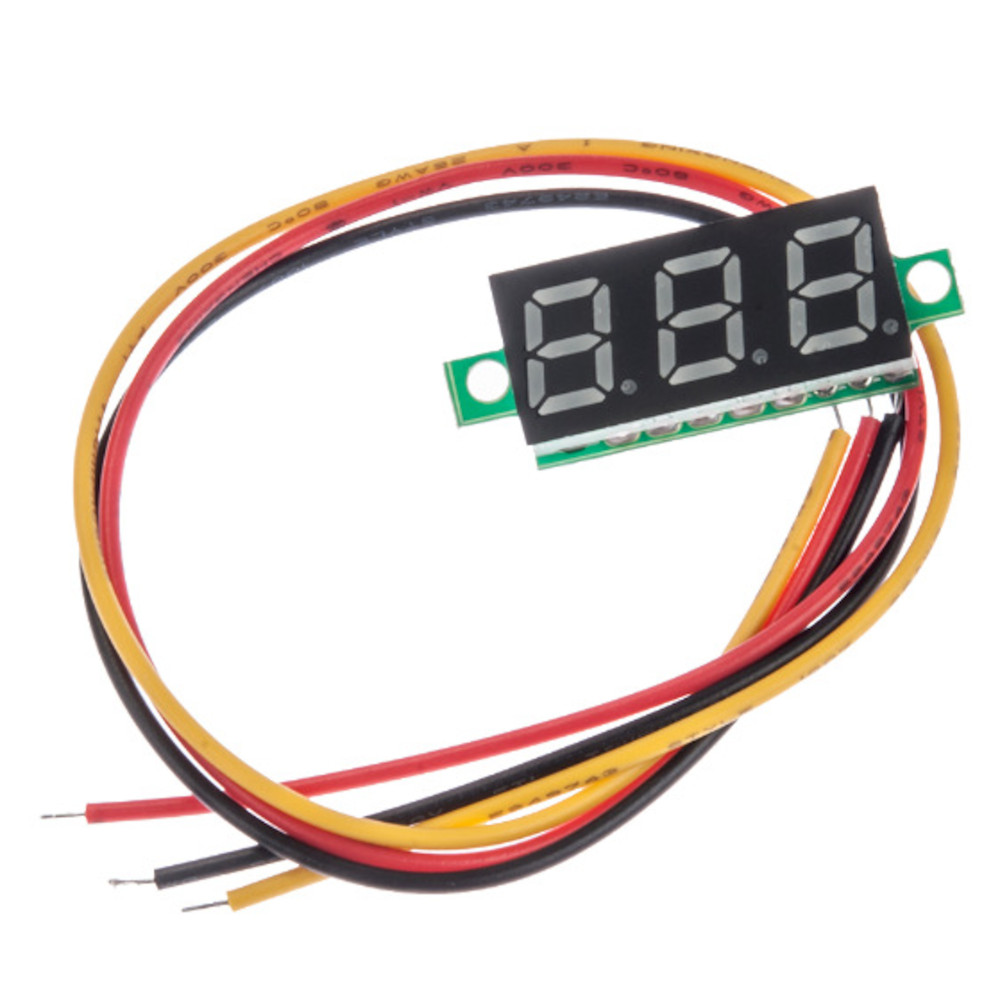

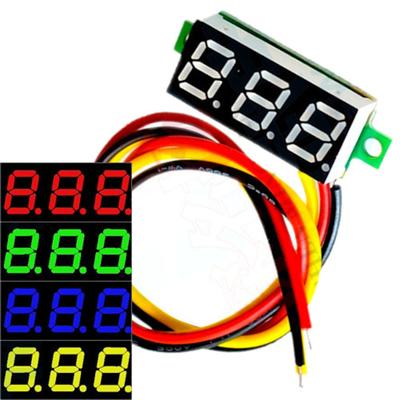

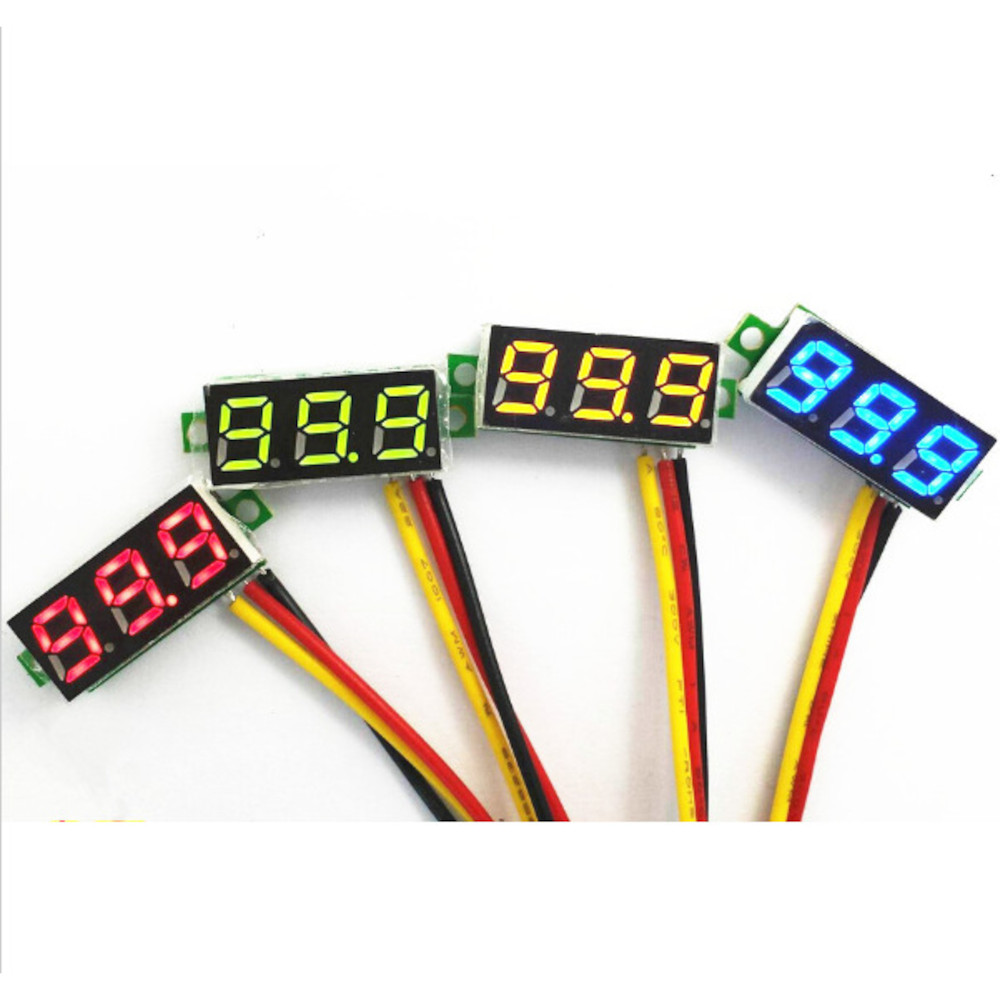

Ultra-small 0-100V DC 3-Wire Voltmeter LED Volt Meter Voltage Tester (Green)
Available from our marketplace stores:
| Marketplace | Pack size | Price (USD) |
|---|---|---|
| Amazon (FBA) | 5 units | $5.98 |
| Newegg | 1 unit | $4.93 |
| eBay | 1 unit | $3.76 |
Prices and availability may change. Shipping and taxes are shown at marketplace checkout.
SKU: VOLTMETER-D-GRN
UPC: 845832032177
• Monitor DC voltage between 0V and 100V with this simple 3-wire voltmeter

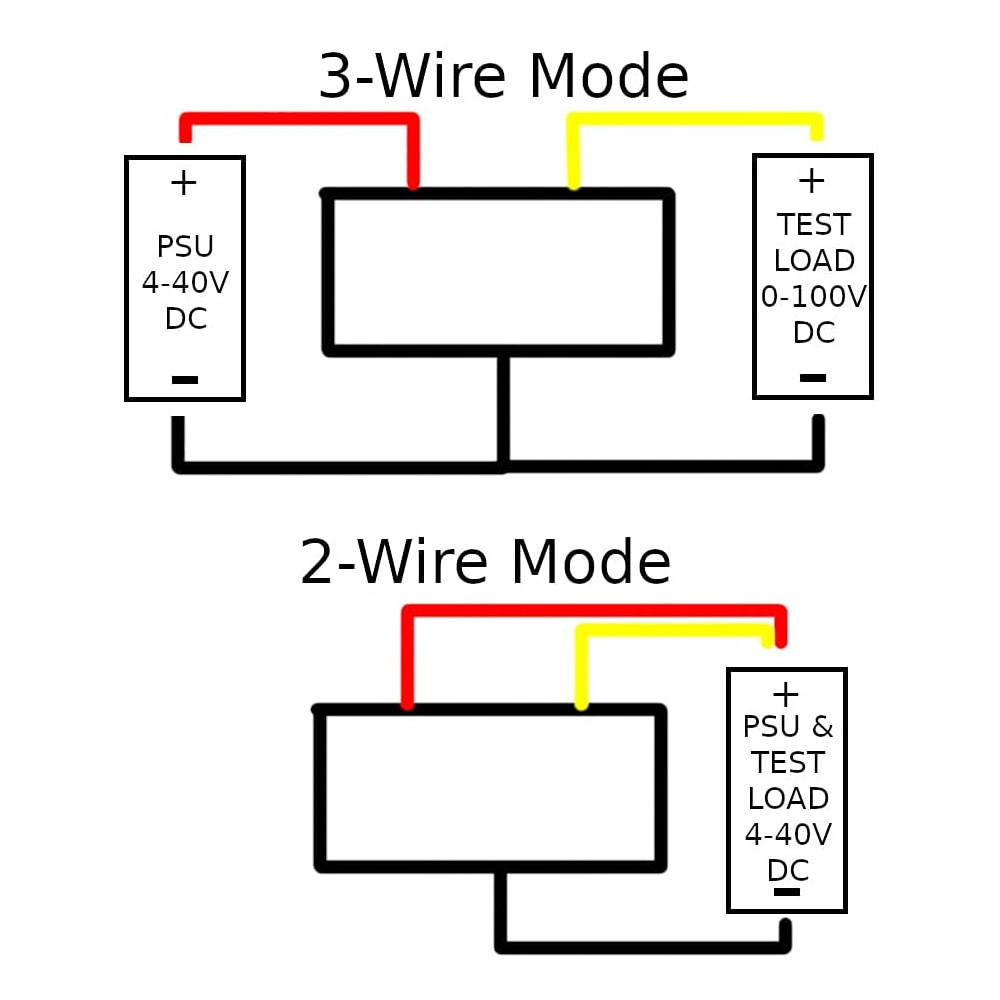

• Use a separate 4-40V DC power supply allowing voltage readings down to 0V and up to 100V or use it as a 2-wire voltmeter for 4-40V.
• Working current: <20mA • Refresh rate: 200ms • Auto ranging 0.01V precision • Reverse polarity protection
• Size: 23x11.7x9.2mm (30mm wide including posts) • Wire Length: 15cm
• Operating Temp: -10℃ - 65℃ • DC only, not for use with AC • Supply voltage above 40V will damage the unit
UPC: 845832032177
• Monitor DC voltage between 0V and 100V with this simple 3-wire voltmeter
• Use a separate 4-40V DC power supply allowing voltage readings down to 0V and up to 100V or use it as a 2-wire voltmeter for 4-40V.
• Working current: <20mA • Refresh rate: 200ms • Auto ranging 0.01V precision • Reverse polarity protection
• Size: 23x11.7x9.2mm (30mm wide including posts) • Wire Length: 15cm
• Operating Temp: -10℃ - 65℃ • DC only, not for use with AC • Supply voltage above 40V will damage the unit
