DC 100V 100A Voltmeter Ammeter Dual LED Display Panel Volt Guage Amp Meter Voltage Current Tester with Shunt
Price
$7.99FREE SHIPPING āļø
SKU: VOLTMETER-F
UPC: 845832032214

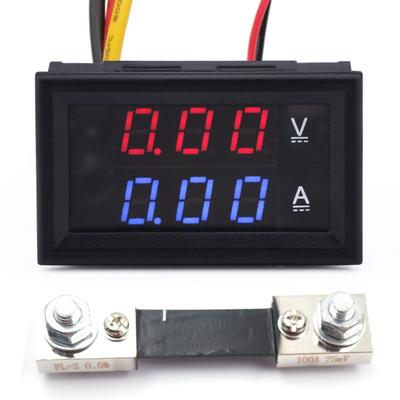

• Simultaneously monitor DC voltage up to 100V and current up to 100A ā¢ A heavy duty 75mĪ© external shunt handles the current
• Auto ranging 0.01V 0.01A precision ā¢ Ā±0.1% voltage tolerance ā¢ Ā±1% current tolerance ā¢ Working current: <20mA ā¢ Refresh rate: 300ms
• Size: 48x29x22mm ā¢ Hole size: 46x27mm ā¢ Operating Temp: -10ā - 65ā ā¢ DC only, not for use with AC ā¢ 4-28V supply voltage

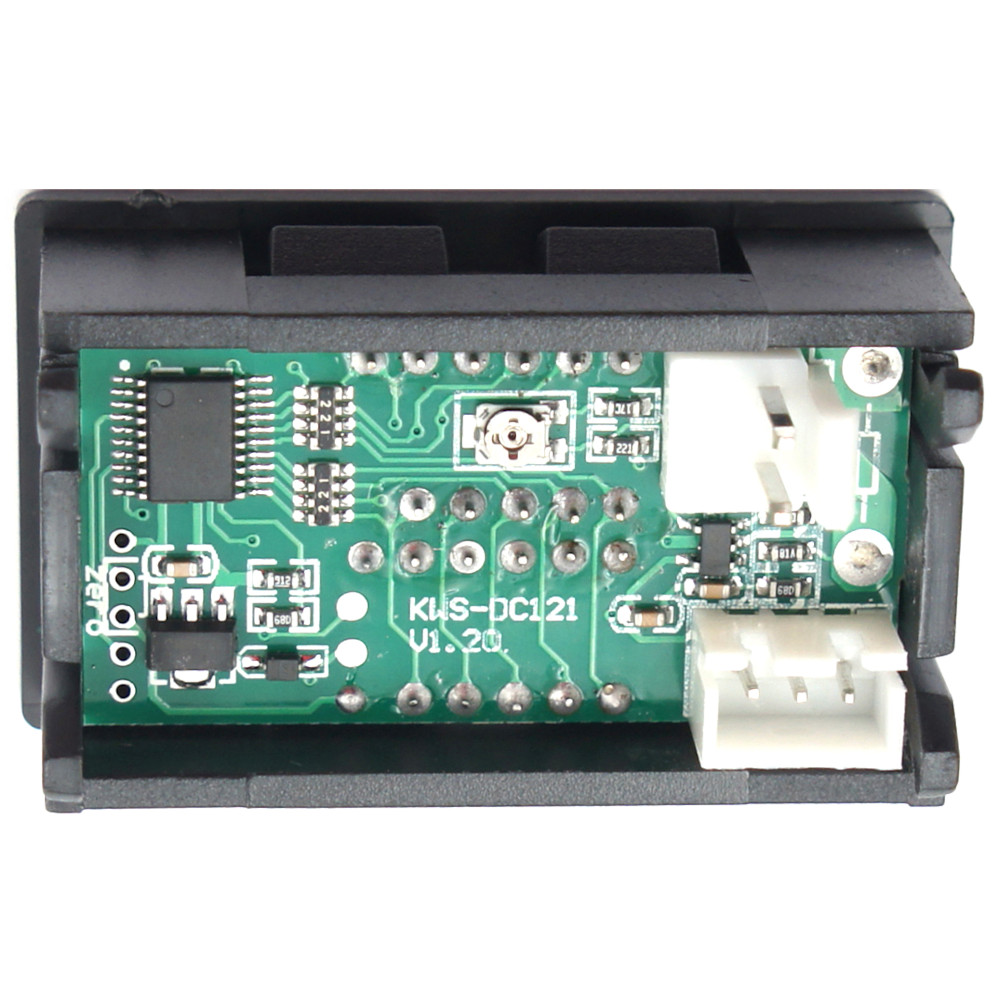

• There are potentiometers on the back of the unit to calibrate voltage and current. In order to get accurate readings, it is necessary to calibrate against a known voltage and current on first use. The meter may display 0 current until it has been calibrated.

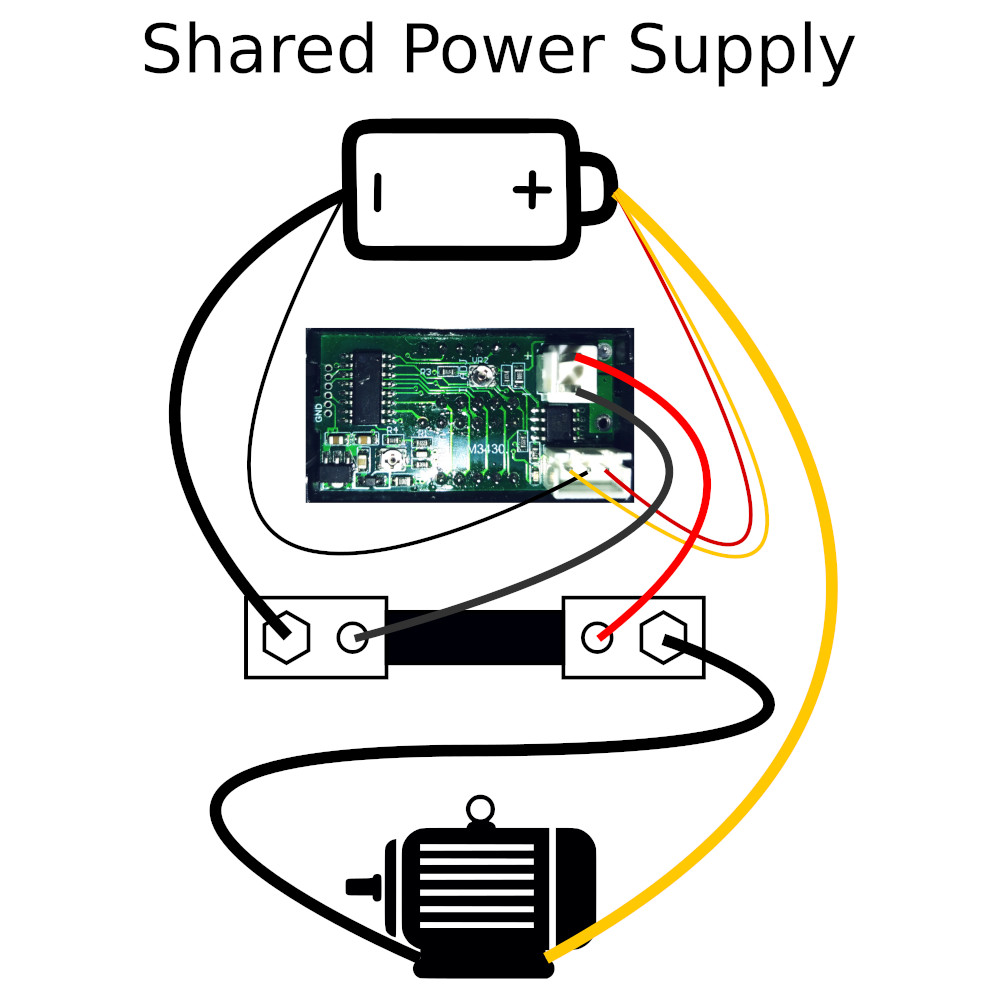

• Note: If the meter supply voltage (thin red wire) is the same as the load, then it must only be used with 4-28V or the meter may be damaged
UPC: 845832032214
• Simultaneously monitor DC voltage up to 100V and current up to 100A ā¢ A heavy duty 75mĪ© external shunt handles the current
• Auto ranging 0.01V 0.01A precision ā¢ Ā±0.1% voltage tolerance ā¢ Ā±1% current tolerance ā¢ Working current: <20mA ā¢ Refresh rate: 300ms
• Size: 48x29x22mm ā¢ Hole size: 46x27mm ā¢ Operating Temp: -10ā - 65ā ā¢ DC only, not for use with AC ā¢ 4-28V supply voltage
• There are potentiometers on the back of the unit to calibrate voltage and current. In order to get accurate readings, it is necessary to calibrate against a known voltage and current on first use. The meter may display 0 current until it has been calibrated.
• Note: If the meter supply voltage (thin red wire) is the same as the load, then it must only be used with 4-28V or the meter may be damaged
